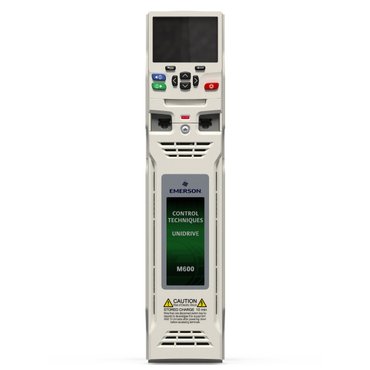

Control Techniques M600-034-00100A | Unidrive M600 Variable Speed Drive | 5.5 kW, 18.5 A, 3-Phase 380–480 V
Part Number : M600-034-00100A
Rated 5.5 kW (7.5 hp) with 18.5 A maximum continuous current, the M600-034-00100A is a compact Unidrive M600 drive for three-phase 380–480 V AC supplies. It runs induction and permanent-magnet motors sensorlessly, and the onboard PLC executes Machine Control Studio programs for logic, sequencing, speed following and digital lock.
- 200% motor overload rating
- 62.5 µs current-loop update for accurate torque and speed response
- I/O: 3 analogue in, 4 digital in, 2 analogue out, 3 digital I/O, 1 digital out, 1 relay
- Modbus RTU over dual RS485 ports; up to three SI option modules
- IP21, 382 x 83 x 200 mm, 4.5 kg
