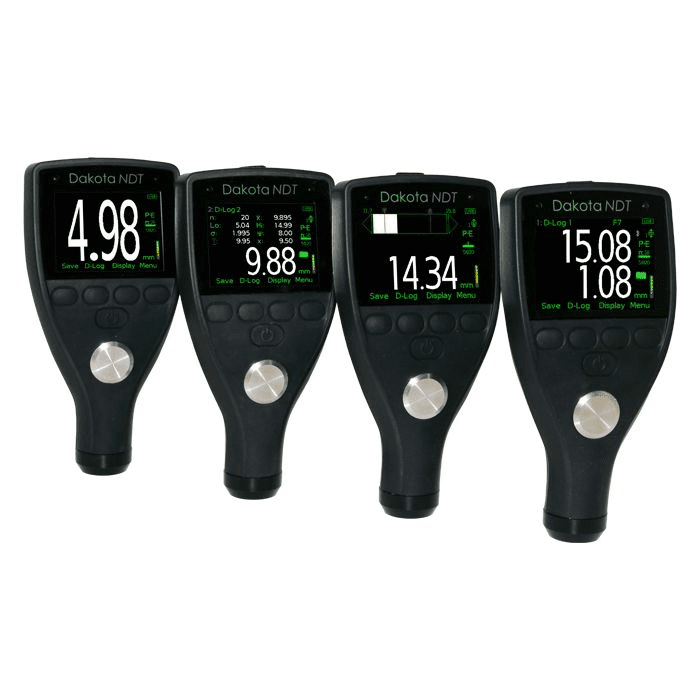

Dakota CX2 | Material Thickness Gauge | Range - Pulse Echo 0.63 - 500mm (0.025 - 19.999”)
For a variety of applications, the Dakota CX Ultrasonic Material Thickness Gauges offer all the capabilities and functionality required to measure material thickness and velocity on almost any material. Upper and lower limits can be specified by users, and pass/fail warnings are audible and visible. Limits can be established for every batch or for each individual reading. The 1-Point calibration method is one of the several calibration options available for the Dakota CX thickness gauges. Additionally, users can save up to three calibrations into the memory or choose from one of 39 pre-set materials that are kept inside the gauge. The Dakota corrosion gauge range is versatile and simple to use; it can measure coated as well as uncoated surfaces.

Free UAE shipping available
- Specifications
- Features
Accuracy | Pulse Echo (PE) +/-0.1mm (0.63-19.99mm) +/-0.5% (20.00-500.00mm) Echo Echo ThruPaint¢ž¢ (EE) +/-0.1mm (2.54-25.4mm) |
Battery Life | Alkaline: 15 hours Lithium: 28 hours |
Dimensions | 145 x 73 x 37mm (5.7 x 2.84 x 1.46�), without transducer |
Operating Temperature | -10 to 50°C (14 to 122°F) |
Power Supply | 2 x AA batteries |
Range | Pulse Echo (PE) : 0.63 - 500mm (0.025 - 19.999�) |
Weight | 210g (7.4oz) - including batteries, without transducer |
- A multilingual menu system that is simple to use.
- Dust-resistant, waterproof, impact-resistant, and robust—equivalent to IP64.
- Vibrant color screen with an ever-present backlight.
- sensor of ambient light with programmable brightness.
- 2.4" (6cm) TFT display that is resistant to scratches and solvents.
- Big buttons for favorable feedback .
- powered by a USB device and a PC.
- Utilizing DakMasterTM Software, gauge software updates.
