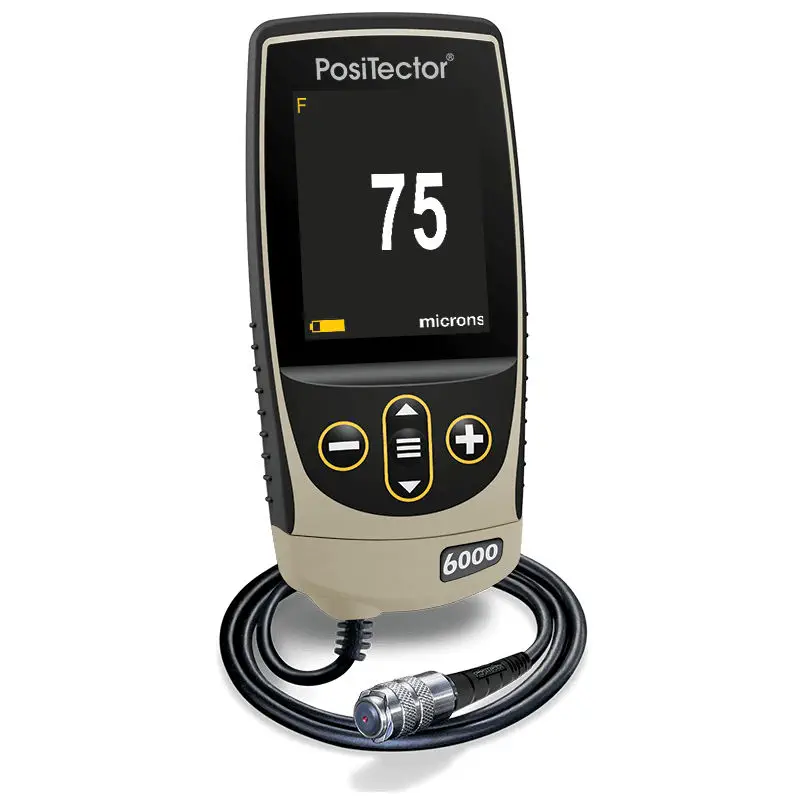

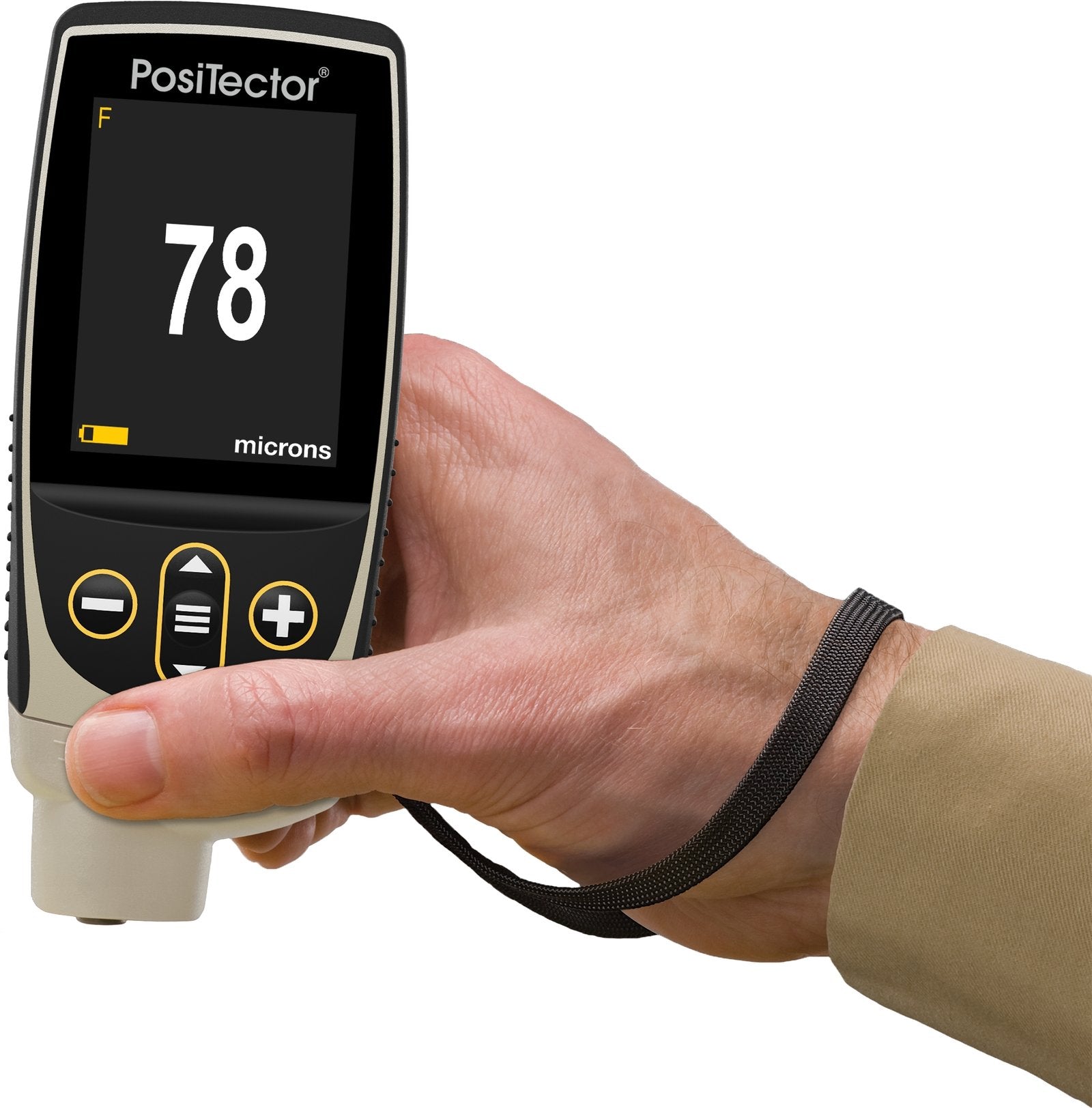

DeFelsko FNDS1 | Standard Ferrous Coating Thickness Gauge | Measuring range 0 - 60 mils, 0 - 1500 ¼m | Ideal for Duplex Coating Systems
Rugged, fully electronic coating thickness gauges use magnetic and eddy current principles to measure coating thickness accurately and quickly
- Ready to measure – no calibration adjustment required for most applications
- Solvent, acid, oil, water, and dust resistant – weatherproof
- Wear resistant ruby probe tip, for long-lasting calibration
- PosiTector interchangeable platform – attach any PosiTector probe to a single gage body
- Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others

Free UAE shipping available
- Specifications
- Features
- Downloads
*Paint Layer Accuracy | : Mils +/- (0.05 mils + 1%) 0 - 2 mils +/- (0.1 mils + 1%) > 2 mils Microns +/- (1 1/4m + 1%) 0 - 50 1/4m +/- (2 1/4m + 1%) > 50 1/4m |
*Zinc Layer Accuracy | Mils +/- (0.1 mils + 1%) 0.5 - 2 mils +/- (0.2 mils + 1%) > 2 mils Microns +/- (2 um + 1%) 13 - 50 um +/- (4 um + 1%) > 50 um |
Material Type | Ferrous |
Measuring range | 0 - 60 mils , 0 - 1500 1/4m |
Minimum Zinc Thickness | 0.5 mil (13 1/4m) |
Probe Type | Straight |
Type | Standard |
- Solvent, acid, oil, water and dust resistant—weatherproof
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster with belt clip
- Two year warranty on gage body AND probe
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for use on applications that require greater precision
- Conforms to national and international standards including ISO and ASTM
