Flexbar ROK-IT-01 | Rok-It Spherical Diameter Plug Gage | 0.250-22.00 in, RC-63 Steel
Part Number : ROK-IT-01

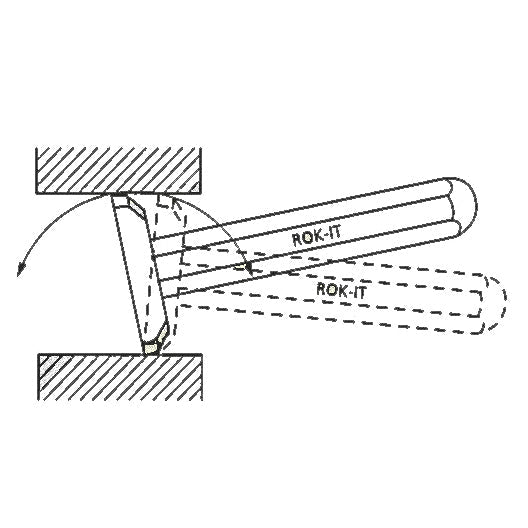

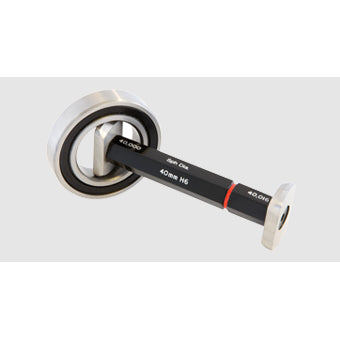

The Flexbar Rok-It (ROK-IT-01) is a spherical diameter plug gage for accepting or rejecting bores. Its true spherical form makes line contact with the bore, cannot seize or jam, and does not need to be lined up perpendicular to the hole, so it is self-centring. Gages are supplied from 0.250 in up to 22.00 in diameter, or metric equivalents, in hard steel (RC-63).
Key features
- Checks bellmouth, hourglass, barrel shape, taper, back taper and ovality
- Enters the bore from any angle; reveals back taper in blind bores
- Checks recesses, shallow counterbores and blind holes
- Hard steel, RC-63

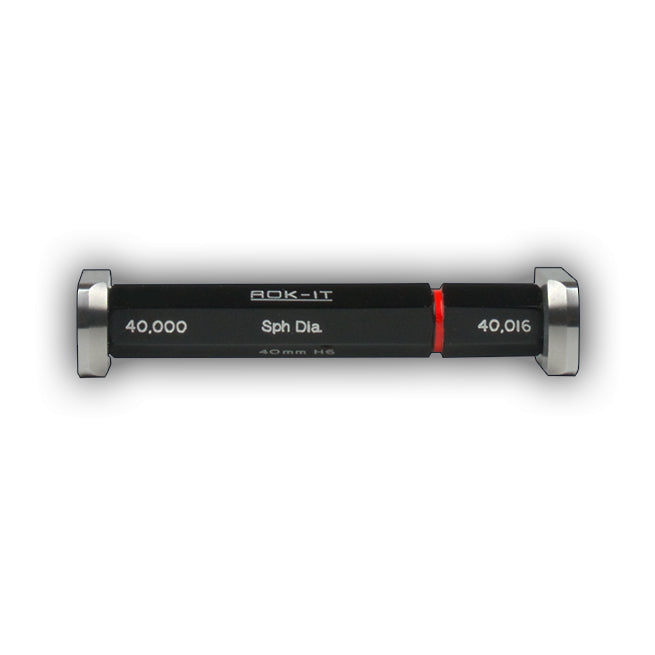

- Light to handle: a 4 in double-ended gage weighs 1 lb
- Gage size can be checked on a comparator using a flat anvil

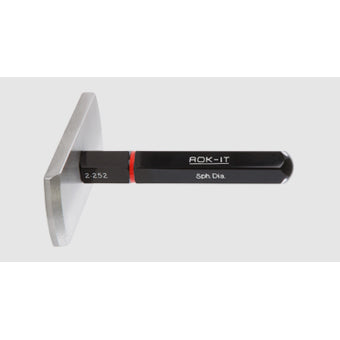

Rok-It gages are made to order. Flexbar asks for the GO and NO GO tolerances, gage class (XX, X, Y or Z), single- or double-ended design and, for deep bore models on articulated handles, the rod length. Single-ended gages are recommended over 6 in diameter.
For pricing, please contact our experts.
