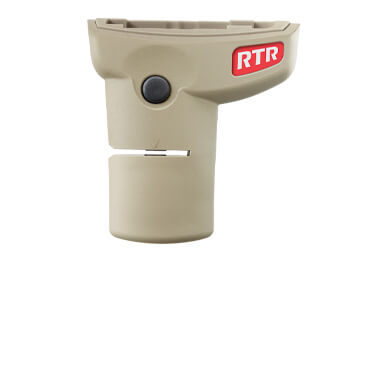

DeFelsko PRBRTR3D | PosiTector RTR 3D Replica Tape Reader Probe Only | 2D/3D Profile Parameters
Part Number : PRBRTR3D

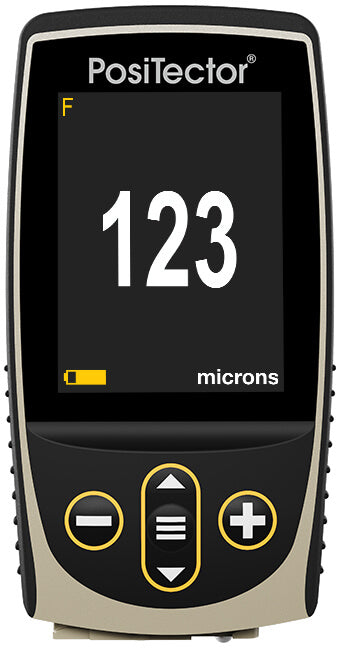

The DeFelsko PRBRTR3D is the PosiTector RTR 3D probe on its own, for use with a PosiTector Standard or Advanced gage body. It reads burnished Testex Press-O-Film replica tape and reports peak height plus 2D and 3D roughness parameters, suiting laboratories and field inspectors who need more than a single profile number from flat, curved or irregular surfaces.
Key features
- 2D parameters: Ra, Rq, Rz, Rp, Rv, Rt, Rpc
- 3D parameters: H, Sa, Sq, Sz, Sp, Sv, Spd
- Range: H 20 to 115 µm, Rt 10 to 115 µm; accuracy (H) ±5 µm
- Short and long cutoff filters and discard lengths can be applied
- Conforms to ASME B46, ASTM D4417, ISO 8503-5 and SSPC-PA 17
- Sold as a probe only: requires a PosiTector Standard or Advanced gage body (not included)
For pricing, please contact our experts.
