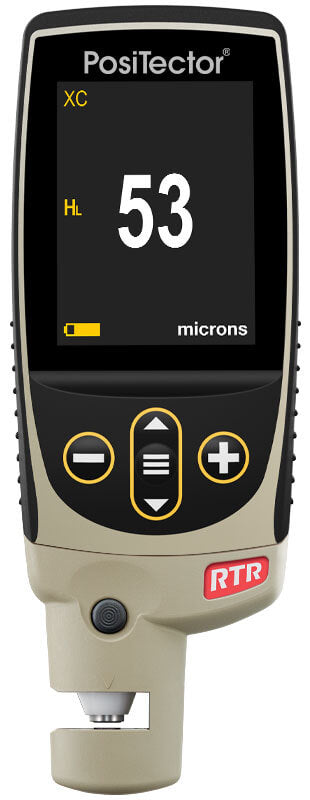

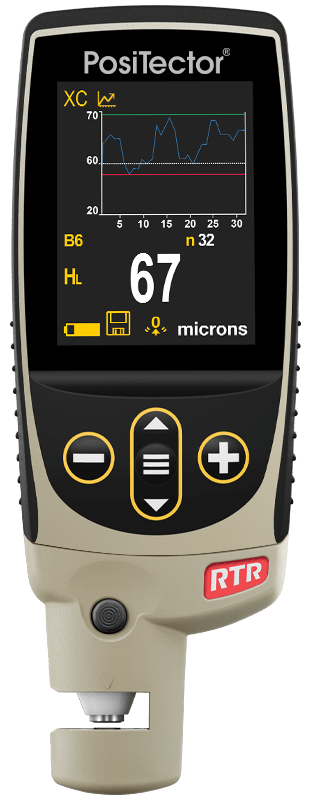

DeFelsko RTRH1 | PosiTector RTR H Replica Tape Reader, Standard | 20 – 115 µm Peak Height
Part Number : RTRH1
The DeFelsko RTRH1 combines the PosiTector RTR H replica tape reader with the Standard gage body. It measures surface profile peak height (HL) from burnished Testex Press-O-Film replica tape on blasted steel and textured coatings, giving blasting contractors and coating inspectors an electronic alternative to a spring micrometer.
Key features
- Peak height (HL) range 20 to 115 µm (0.8 to 4.5 mils)
- Accuracy ±5 µm (±0.2 mils), resolution 1 µm
- Select the tape grade to apply the conversion factor and subtract the 50 µm backing automatically
- Reads Coarse Minus, Coarse, X-Coarse and X-Coarse Plus replica tape
- Conforms to ASTM D4417, ISO 8503-5, NACE SP0287 and SSPC-PA 17
- Standard gage body stores 1,000 readings per probe
For pricing, please contact our experts.
