DeFelsko UTGC3 | PosiTector UTG C Ultrasonic Thickness Gauge, Advanced | Corrosion, Cabled, 1 – 125 mm
Part Number : UTGC3

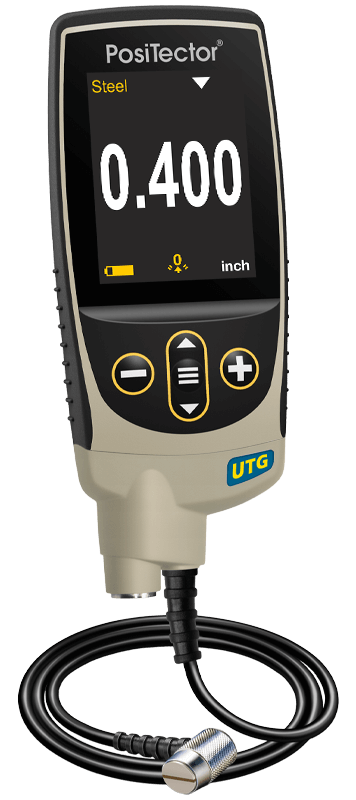

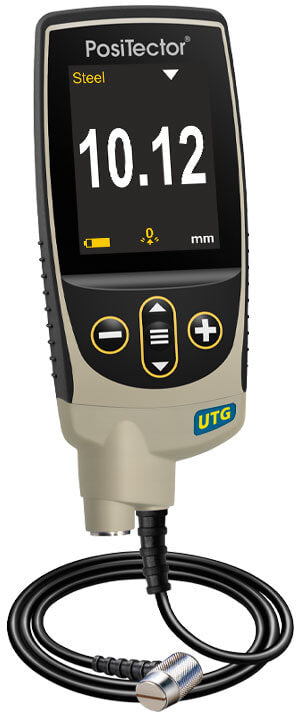

The DeFelsko UTGC3 is the PosiTector UTG C ultrasonic wall thickness gauge on the Advanced gage body, using a 5 MHz dual element transducer (cabled probe on a 1 m cable). It is aimed at heavily corroded or pitted metal, letting inspectors measure wall thickness from one side of a part or structure. The Advanced body adds A-Scan and B-Scan displays.
Key features
- Probe type: 5 MHz dual element
- Thru-paint capability: No
- Measuring Range: 1.00 – 125.00 mm (0.040 – 5.000 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
