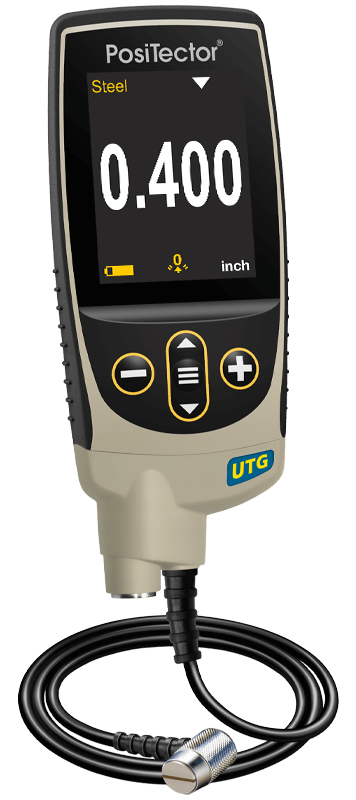

DeFelsko UTGCX3 | PosiTector UTG CX Ultrasonic Thickness Gauge, Advanced | Xtreme Braided Cable, up to 125 mm
Part Number : UTGCX3

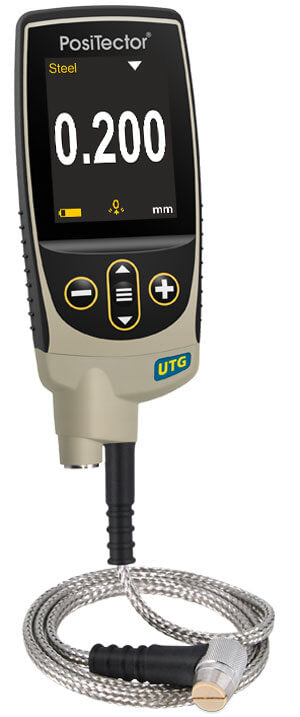

The DeFelsko UTGCX3 is the PosiTector UTG CX ultrasonic wall thickness gauge on the Advanced gage body, using a 5 MHz dual element transducer (braided stainless steel cable with heavy-duty strain reliefs). It is aimed at corrosion work in demanding environments, letting inspectors measure wall thickness from one side of a part or structure. The Advanced body adds A-Scan and B-Scan displays.
Key features
- Probe type: 5 MHz dual element
- Thru-paint capability: No
- Measuring Range: 2.00 – 125.00 mm (0.080 – 5.000 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Advanced gage body stores 250,000 readings in up to 1,000 batches and adds WiFi and Bluetooth
For pricing, please contact our experts.
