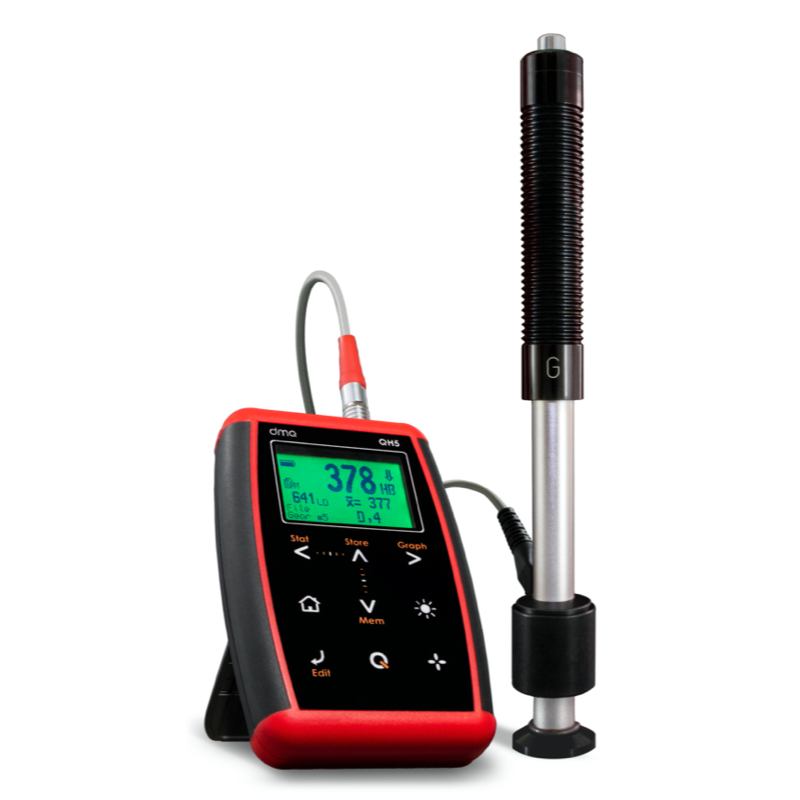

DMQ QH5 G | Portable Rebound Hardness Tester | Range 200HL to 960HL
Measure hardness in large, founded, or forged objects with rough surface finishes using a DMQ type G impact device connected to the QH5. Measure up to 650 HB in Brinell. All QH5 versions come with histogram graphics, real-time statistics, configurable viewing modes, a Data Logger that can save 32000 measurements and send them to a computer, and much more.
- Specifications
- Features
- Downloads
Material | Steel and Cast Steel Grey Cast Iron Spheroid Iron |
Measurement method | Impact rebound Leeb method Resolution of +/- 1HL Accuracy +/- 4HL (0.5% at 800HL) Depending on material being tested |
Measurement Range (RH) | 200 a 960 HL (Leeb) Steel and Cast Steel 90-646 HB (Brinell) 48-100 HRB (Rockwell B) 305-2194 N/mm2 (Rm) Grey Cast Iron 92-326 HB (Brinell) Spheroid Iron 127-364 HB (Brinell) |
Power Supply | 2 x AA 1.5v Alkaline 2 x AA 1.2v Ni-MH Recargable Easy slide battery compartment cover |
- Automatic hardness unit conversions
- User defined units
- Direct access key
- Realtime graphics
- Realtime statistics
- Alarms
- Selectable view modes
- Measuring modes
- Internal clock
Related Products

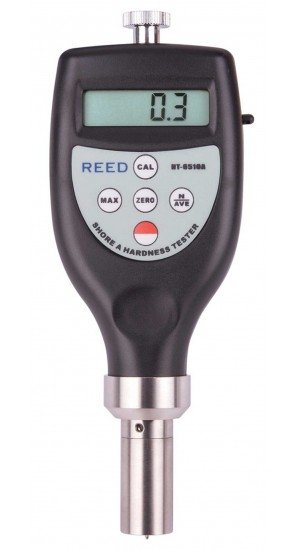

REED HT-6510A "A" Scale Durometer

REED HT-6510A "A" Scale Durometer

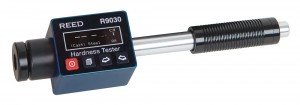

REED R9030 Pen-Style Hardness Tester

REED R9030 Pen-Style Hardness Tester

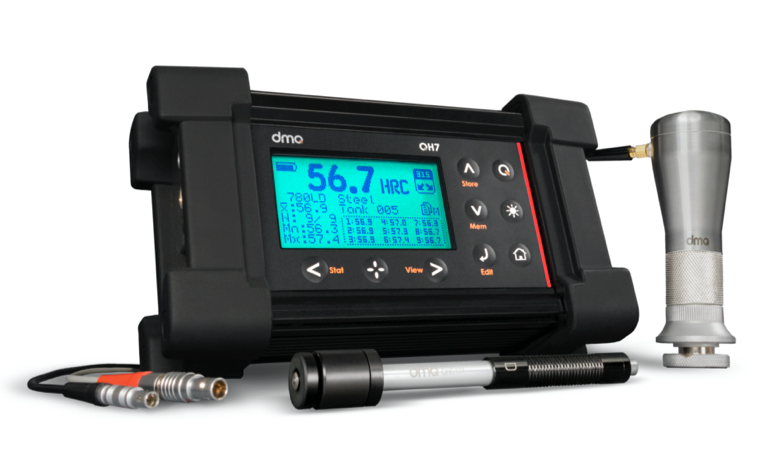

DMQ QH7 C HEAVY-DUTY Leeb & Ultrasonic Contact Impedande Combo Hardness Tester | Range 100HV to 940HV

DMQ QH7 C HEAVY-DUTY Leeb & Ultrasonic Contact Impedande Combo Hardness Tester | Range 100HV to 940HV

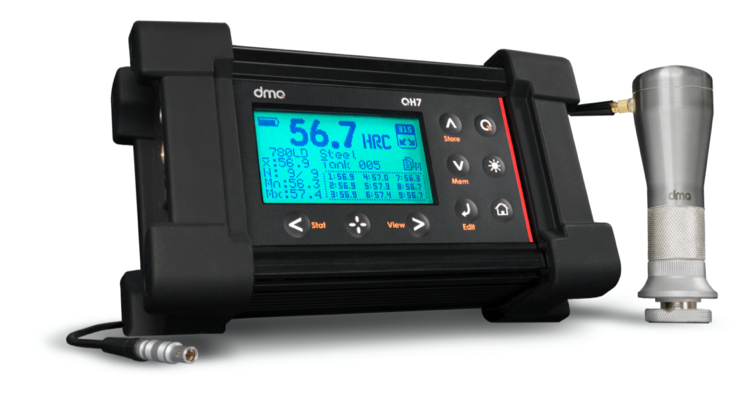

DMQ QH7 Ultrasonic Contact Impedande HEAVY-DUTY Hardness testers, Range 100HV to 940HV

DMQ QH7 Ultrasonic Contact Impedande HEAVY-DUTY Hardness testers, Range 100HV to 940HV

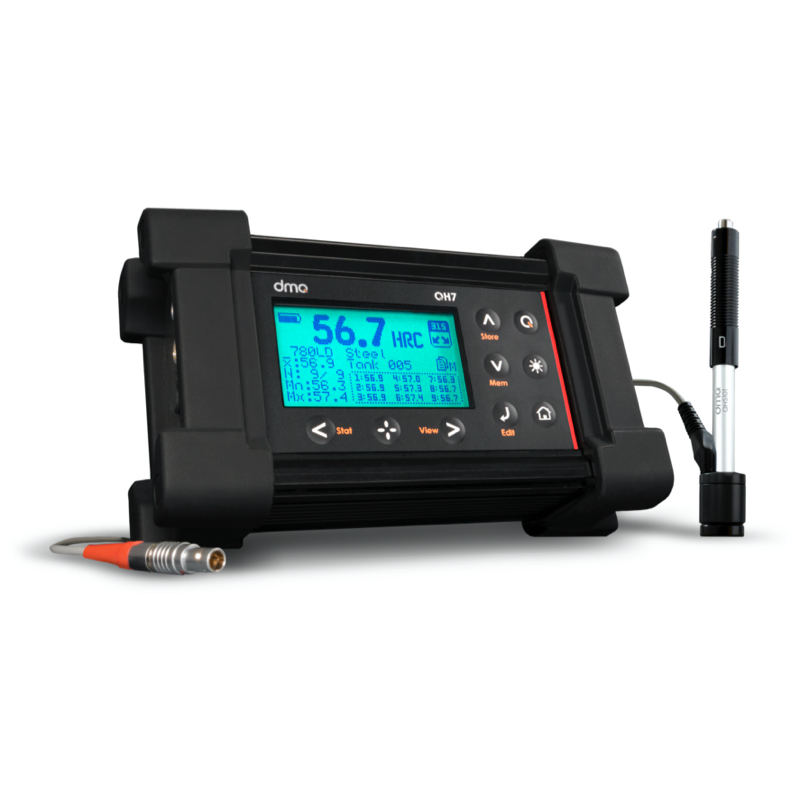

DMQ QH7 L | Leeb Hardness Tester for Heavy Duty | Range 200HL to 960HL

DMQ QH7 L | Leeb Hardness Tester for Heavy Duty | Range 200HL to 960HL

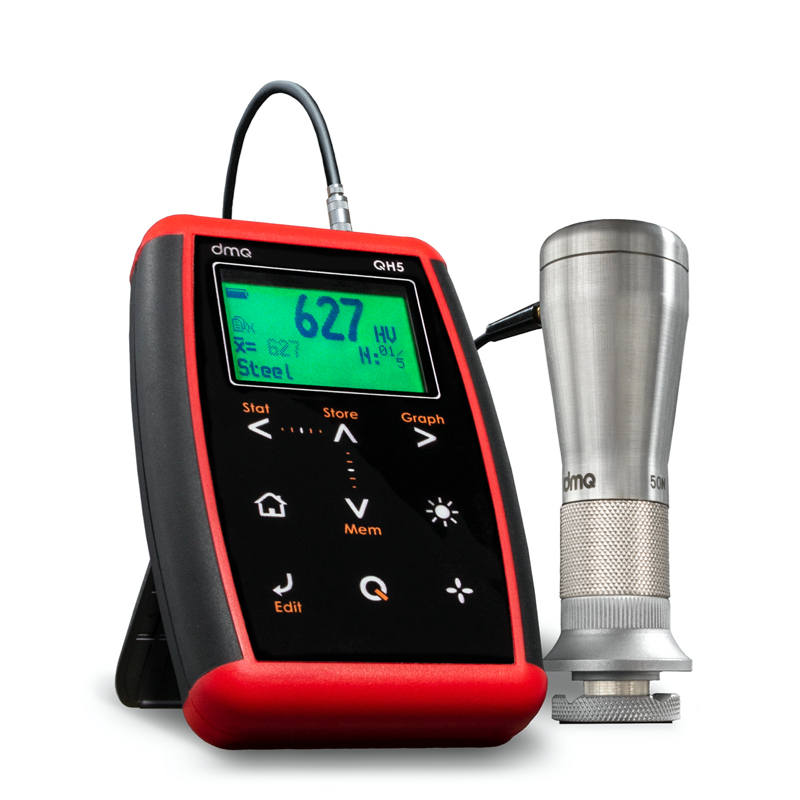

DMQ QH5 U | Portable Ultrasonic Compact Impedance Hardness Tester | Range 100HV to 940HV

DMQ QH5 U | Portable Ultrasonic Compact Impedance Hardness Tester | Range 100HV to 940HV

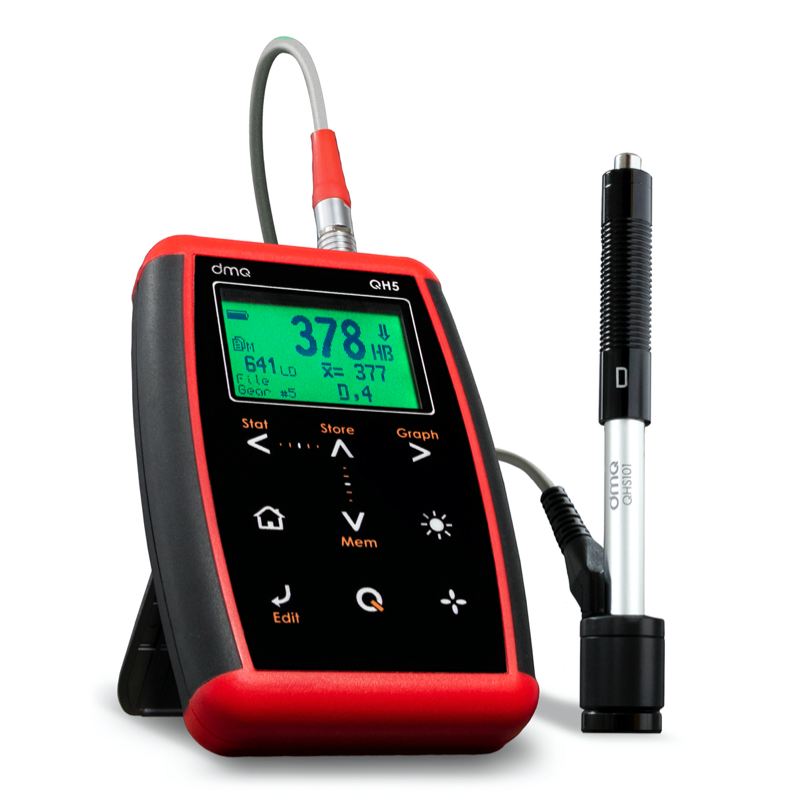

DMQ QH5 D Portable Leeb Hardness Tester | Range 200HL to 960HL
