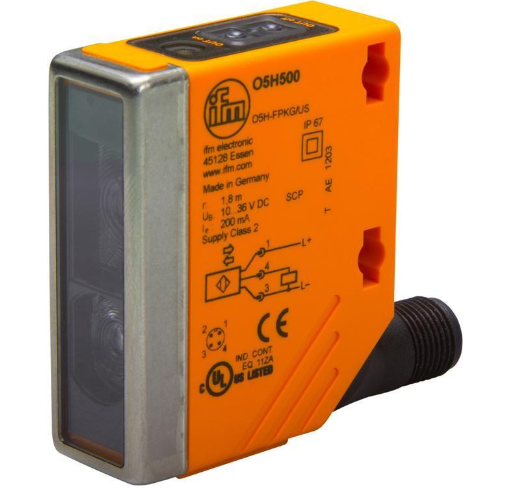

Diffuse reflection sensor ifm electronic O5H500 - O5H-FPKG/US
The diffuse reflection sensor O5H500 - O5H-FPKG/US from ifm is very robust due to the high protection rating IP67 and can be easily set thanks to the innovative teach method. The unit features one button each for setting a precise on and off state. The diffuse reflection sensor O5H500 - O5H-FPKG/US with background suppression features a high range of 0.05-1.8 m and programmable light-on/dark-on mode. The sophisticated mounting accessories and the M12 connector which is rotatable by 270° enable easy adaptation in your application. The highly precise diffuse reflection sensor O5H500 - O5H-FPKG/US is the perfect solution for position detection in packaging and conveying.
- Specifications
- Features
- Downloads
Ambient temperature | -25 °C to 60 °C |
Current consumption [mA] | 25 |
Electrical design | PNP |
Housing | rectangular |
Operating voltage [V] | 10-36 DC V |
Output function | light-on/dark-on mode |
Overload protection | yes |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
- Very long range
- Precise background suppression
- Sensitivity adjustable via teach buttons
- Robust housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
