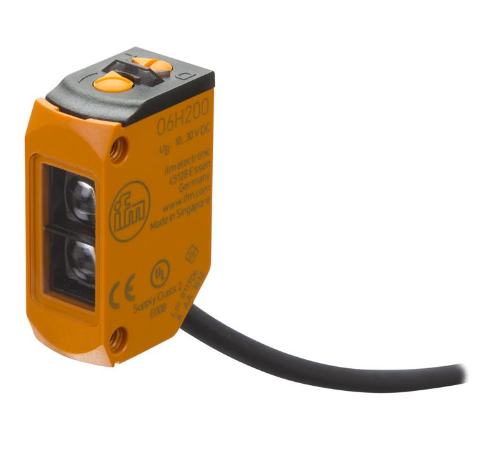

Diffuse reflection sensor ifm electronic O6H200 - O6H-FPKG
The compact diffuse reflection sensor with background suppression O6H200 - O6H-FPKG from ifm electronic is characterised by a plastic housing with protection rating IP65/IP67, light-on/dark-on mode and a range of 2-200 mm. The diffuse reflection sensor O6H200 is easily set via potentiometer. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6H200 diffuse reflection sensor with a 2.0 m (3 x 0.25 mm²) long PUR cable is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
Current consumption [mA] | 22; ((24 V)) |
Electrical design | PNP |
Housing | rectangular |
Operating voltage [V] | 10-30 DC V |
Output function | light-on/dark-on mode; (selectable) |
Protection class | III |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
System | Background suppression |
- Particularly compact housing for use where space is restricted
- Intuitive setting of the sensitivity via potentiometer
- User-friendly selection of light-on or dark-on via rotary switch
- Precise background suppression sensing on highly reflective background
- Excellent price/performance ratio
