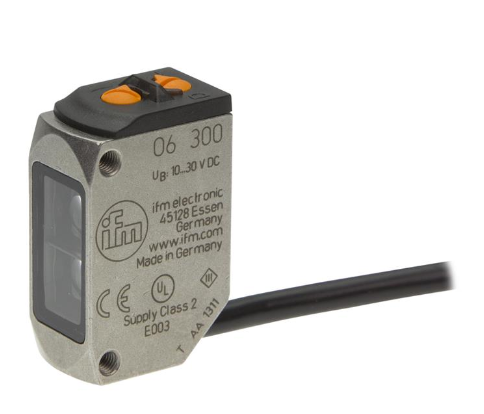

Diffuse reflection sensor ifm electronic O6H300 - O6H-FPKG
The compact diffuse reflection sensor with background suppression O6H300 - O6H-FPKG from ifm is characterised by a robust stainless steel housing with protection rating IP65/IP67/IP68/IP69K and a range of 2-200 mm. The diffuse-reflection sensor O6H300 - O6H-FPKG is easily set via potentiometer. The double seal of the potentiometer and the flush front lens made of shatterproof plastic allow cleaning without residue. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The diffuse reflection sensor O6H300 - O6H-FPKG with cable connection is the perfect solution for use in the food industry.
- Specifications
- Downloads
Current consumption [mA] | 22; ((24 V)) |
Electrical design | PNP |
Housing | rectangular |
Light Source | red light |
Operating voltage [V] | 10-30 DC V |
Output function | light-on/dark-on mode; (selectable) |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
System | Background suppression |
