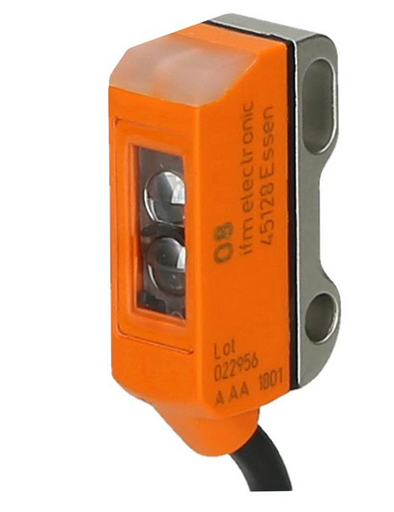

Diffuse reflection sensor ifm electronic O8T200 - O8T-HPKG/IO-Link/2,0M
The compact diffuse reflection sensor O8T200 - O8T-HPKG/IO-Link/2,0M from ifm electronic is characterised by its robust housing with stainless steel mounting bracket and IP65/IP67 protection rating. The sensor has a sensing range of 0-180 mm and offers a PNP switching output as light-on switching. The O8H200 diffuse reflection sensor is conveniently set via IO-Link. Thanks to the clearly visible LEDs, the operating and switching statuses are easily recognizable even in bright surroundings. The diffuse reflection sensor O8T200 - O8T-HPKG/IO-Link/2,0M is the perfect solution for use in confined spaces in supply and handling technology applications.
- Specifications
- Features
- Downloads
Ambient temperature | -25 °C to 60 °C |
Current consumption [mA] | 20; ((24 V)) |
Electrical design | PNP |
Housing | rectangular |
Operating voltage [V] | 10-30 DC V |
Output function | light-on mode |
Protection class | III |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Easy setting of the range with IO-Link
- Very long range
