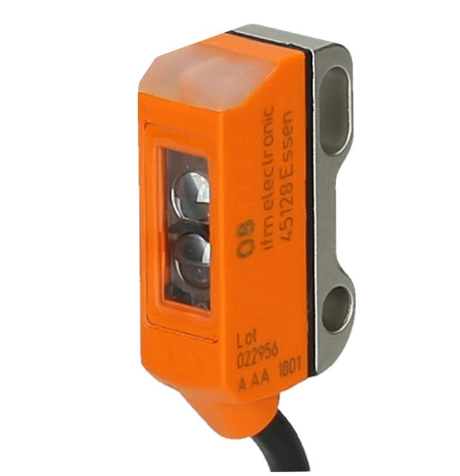

Diffuse reflection sensor ifm electronic O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P

Name: Diffuse reflection sensor ifm electronic O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P
Brand: ifm
SKU: O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P
Availability: OutOfStock

Part Number : O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P

The compact diffuse reflection sensor O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P from ifm electronic is characterised by its robust housing with stainless steel mounting bracket and IP65/IP67 protection rating. The sensor has a sensing range of 0-180 mm and offers a PNP switching output as light-on switching. The O8H202 diffuse reflection sensor is conveniently set via IO-Link. Thanks to the clearly visible LEDs, the operating and switching statuses are easily recognizable even in bright surroundings. The diffuse reflection sensor O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P is the perfect solution for use in confined spaces in supply and handling technology applications.

Availability: Sold out

Specifications
Features
Downloads

Ambient temperature	-25 °C to 60 °C
Current consumption [mA]	20; ((24 V))
Electrical design	PNP
Housing	rectangular
Operating voltage [V]	10-30 DC V
Output function	light-on mode
Protection class	III
Reverse polarity protection	yes
Short-circuit protection	yes
Switching frequency DC [Hz]	1000 Hz

Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Precise detection of very small, very flat or highly reflective components
Easy setting of the range with IO-Link
Very long range
