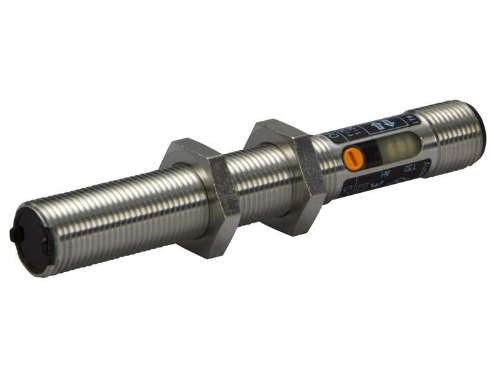

Diffuse reflection sensor ifm electronic OF5012 - OFT-FPKG/US
The M12 diffuse reflection sensor OF5012 - OFT-FPKG/US from ifm has a range of 1-200 mm and programmable light-on/dark-on mode. Thanks to the function check output the unit is reliable in the application. The sensitivity of the diffuse reflection sensor OF5012 - OFT-FPKG/US can be easily set via potentiometer. Thanks to the high protection IP65 the unit is very robust. The diffuse reflection sensor OF5012 - OFT-FPKG/US with M12 connector is the optimum solution for position detection in factory automation, packaging and conveying.
- Specifications
- Features
- Downloads
Current consumption [mA] | <35 |
Electrical design | PNP |
Housing | threaded type |
Light Source | infrared light |
Operating voltage [V] | 10-36 DC V |
Output function | light-on/dark-on mode; (programmable) |
Overload protection | yes |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 320 Hz |
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
