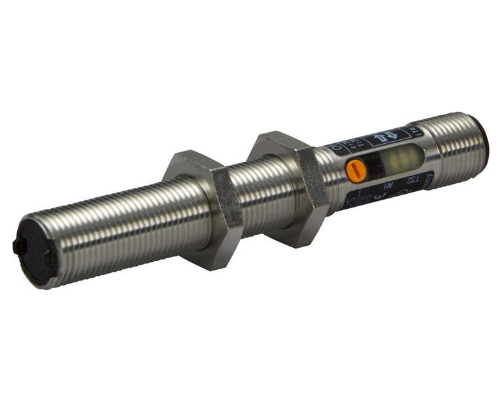

Diffuse reflection sensor ifm electronic OF5027 - OFB-FPKG/US
The M12 diffuse reflection sensor OF5027 - OFB-FPKG/US with focussed light beam from ifm features a range of 1-400 mm and a programmable light-on/dark-on mode. Thanks to the function check output the unit is reliable in the application. The sensitivity of the diffuse reflection sensor OF5027 - OFB-FPKG/US can be easily set via potentiometer. Thanks to the high protection IP65 the unit is very robust. The diffuse reflection sensor OF5027 - OFB-FPKG/US with M12 connector is the optimum solution for position detection in factory automation, packaging and conveying.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 60 °C |
| Current consumption [mA] | <35 |
| Electrical design | PNP |
| Housing | threaded type |
| Operating voltage [V] | 10-36 DC V |
| Output function | light-on/dark-on mode |
| Overload protection | Yes |
| Reverse polarity protection | Yes |
| Short-circuit protection | Yes |
| Switching frequency DC [Hz] | 320 Hz |
- Intuitive setting of the sensitivity via potentiometer
- With function check output to signal soiling or maladjustment
- Robust metal housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
- With very focused light beam
