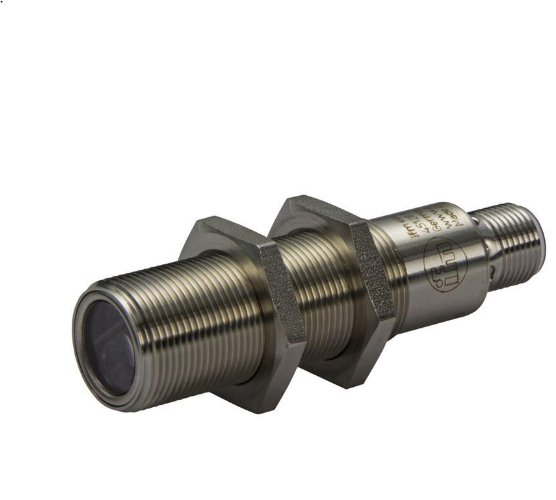

Diffuse reflection sensor ifm electronic OGH300 - OGH-HPKG/US
The M18 diffuse reflection sensor with background suppression OGH300 - OGH-HPKG/US from ifm features a range of 0-100 mm and light-on mode. Thanks to the fixed setting, easy set-up is ensured. The diffuse reflection sensor OGH300 - OGH-HPKG/US is of tested quality, confirmed by the ECOLAB certificate. Thanks to the robust stainless steel housing with the optimum sealing concept IP68/IP69K and a PMMA plastic lens the diffuse reflection sensor OGH300 - OGH-HPKG/US with M12 connector is suitable for applications in hygienic and wet areas in the food industry.
- Specifications
- Features
- Downloads
Current consumption [mA] | 25 |
Electrical design | PNP |
Housing | threaded type |
Operating voltage [V] | 10-36 DC V |
Output function | light-on mode |
Overload protection | yes |
Protection class | II |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Ready for operation immediately thanks to fixed setting
- Precise background suppression
