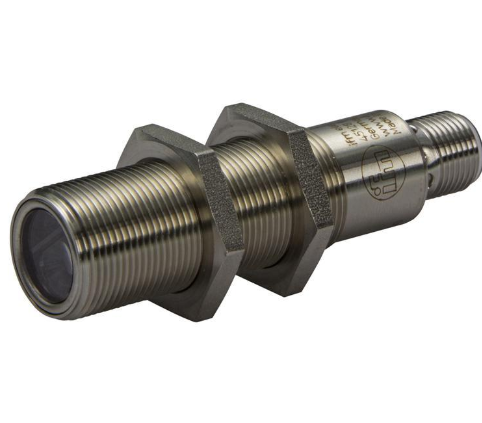

Diffuse reflection sensor ifm electronic OGH305 - OGH-DPKG/US
The M18 diffuse reflection sensor with background suppression OGH305 - OGH-DPKG/US from ifm features a range of 0-300 mm and dark-on mode. Thanks to the fixed setting, easy set-up is ensured. The diffuse reflection sensor OGH305 - OGH-DPKG/US is of tested quality, confirmed by the ECOLAB certificate. Thanks to the robust stainless steel housing with the optimum sealing concept IP67/IP68/IP69K and a PMMA plastic lens the through-beam sensor OGH305 - OGH-DPKG/US with M12 connector is suitable for applications in hygienic and wet areas in the food industry.
- Specifications
- Features
- Downloads
| Current consumption [mA] | 25 |
| Electrical design | PNP |
| Housing | threaded type |
| Operating voltage [V] | 10-36 DC V |
| Output function | dark-on mode |
| Overload protection | yes |
| Protection class | II |
| Reverse polarity protection | yes |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 1000 Hz |
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Ready for operation immediately thanks to fixed setting
- Precise background suppression
