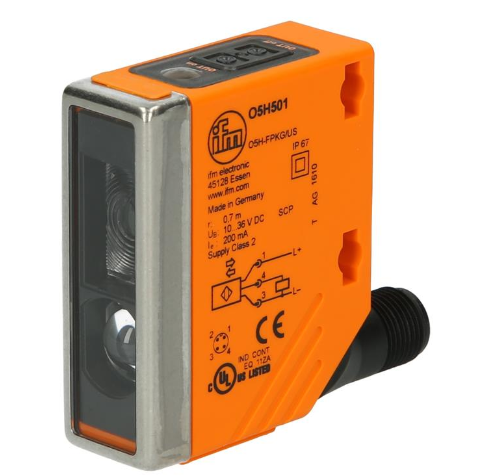

Diffuse reflection sensor with background suppression ifm electronic O5H501 - O5H-FPKG/US100
The rectangular diffuse reflection sensor with background suppression O5H501 - O5H-FPKG/US100 from ifm features a range of 60-700 mm and programmable light-on/dark-on mode. Thanks to the connector that can be rotated by 270° alignment in any direction is possible. The diffuse reflection sensor with background suppression O5H501 - O5H-FPKG/US100 operates with the highest precision. The comprehensive mounting accessories for universal use simplify the adaptation of the retro-reflective sensor. The teach function allows easy setting. The diffuse reflection sensor with background suppression O5H501 - O5H-FPKG/US100 is suitable for position detection in packaging and conveying.
- Specifications
- Features
- Downloads
Current consumption [mA] | 30 |
Electrical design | PNP |
Housing | rectangular |
Operating voltage [V] | 10-36 DC V |
Output function | light-on/dark-on mode; (programmable) |
Overload protection | yes |
Protection class | II |
Reverse polarity protection | yes |
Short-circuit protection | yes |
Switching frequency DC [Hz] | 1000 Hz |
- Very long range
- Precise background suppression
- Sensitivity adjustable via teach buttons
- Robust housing for use in harsh industrial environments
- Programmable light-on/dark-on mode
