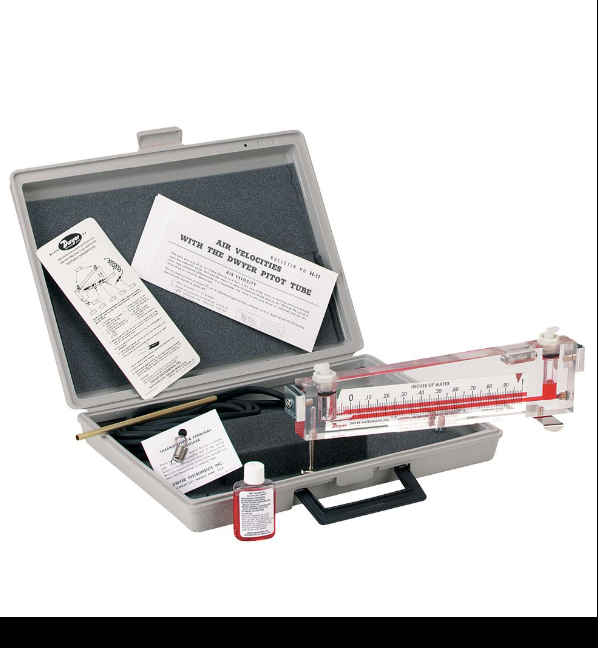

Dwyer Instruments 101 | Solid plastic portable gage | Range .05-0-.50" w.c. | .01 Minor div. | 5" Scale | Plastic carrying case

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 101

For the measurement of static pressure, vacuum, or differential pressure, Dwyer® Series 100 Durablock® Solid Plastic Portable Manometers are precision instruments in inclined and vertical (well-type) forms. All bore and well machining is done to the highest standards of precision, supported by Dwyer's years of experience in the construction of acrylic instruments, to ensure the accuracy required in instruments of this sort.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	2 %
PRESSURE	Max: 0.50 IN of H2O
Range	.05-0-.50
Scale	Length: 5"
Scale	Minor Scale Divisions:
Series	Family: Dwyer Instruments Sensors
Type	Inclined Tube
Weight	3 LBS

Portable gauge made of solid plastic, with a carrying case, a 5" scale, a minor division of.01, and a range of.05 to.50" w.c.
The 1" Thick Acrylic Plastic Body is a robust, nearly indestructible block that is not susceptible to distortion.
The precision of the drilled bore, which is accurate to ±.0002", is unaffected by bends or curves and doesn't need to be adjusted due to distortion.
High wetability gauge oil is chosen to create a well-shaped, constant meniscus that is easy to read.
Easy zeroing is made simple with the thumbscrew locking adjustable reflective chrome finish scales.
To ensure optimal precision and consistency in parallax-free reading, just line the meniscus with its reflected image in the polished metal scale.
With reference to an integrated sensitive ground glass bubble level, the screw type leveling adjustment for inclined style gauges offers quick and precise leveling.
