Part Number : 102.5

For the measurement of static pressure, vacuum, or differential pressure, Dwyer® Series 100 Durablock® Solid Plastic Portable Manometers are precision instruments in inclined and vertical (well-type) forms. All bore and well machining is done to the highest standards of precision, supported by Dwyer's years of experience in the construction of acrylic instruments, to ensure the accuracy required in instruments of this sort.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

PRESSURE	Max: 2 IN of H2O
Range	.20-0-2.0 Inches of Water
Scale	Minor Scale Divisions: .01
Scale	Scale Length: 8-3/4"
Series	Family: Dwyer Instruments Miscellaneous
Type	Inclined Tube
Weight	5 LBS

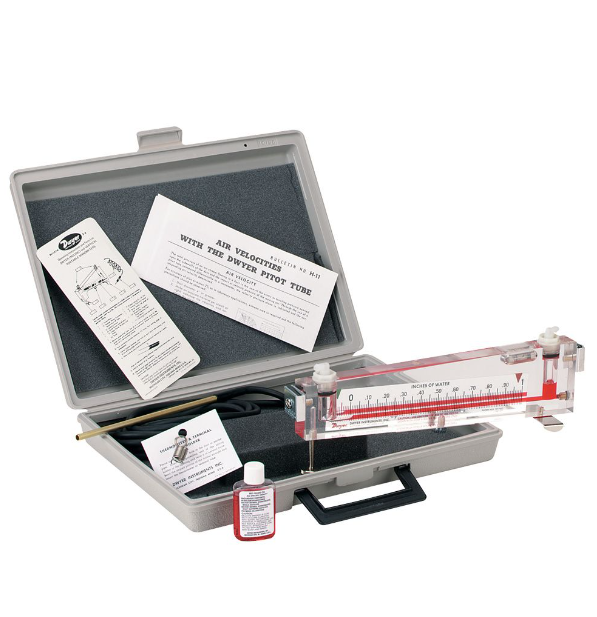

Portable solid plastic gauge with an 8-3/4" scale, a.01 minor division, and a range of.20-0-2.0" w.c. with a plastic carrying box.
1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
The precision of the drilled bore, which is accurate to ±.0002", is unaffected by bends or curves and doesn't need to be adjusted due to distortion.
High wetability gauge oil is chosen to create a well-shaped, constant meniscus that is easy to read.
Thumbscrew locking, reflective chrome finish scales that are adjustable for effortless zeroing
To ensure optimal precision and consistency in parallax-free reading, just line the meniscus with its reflected image in the polished metal scale.
Screw-Style Leveling Using an integrated sensitive ground glass bubble level as a reference, inclined type gauge adjustment offers quick and precise leveling.
Fully equipped with extras and a carrying case made of plastic.
