Part Number : 102-AV

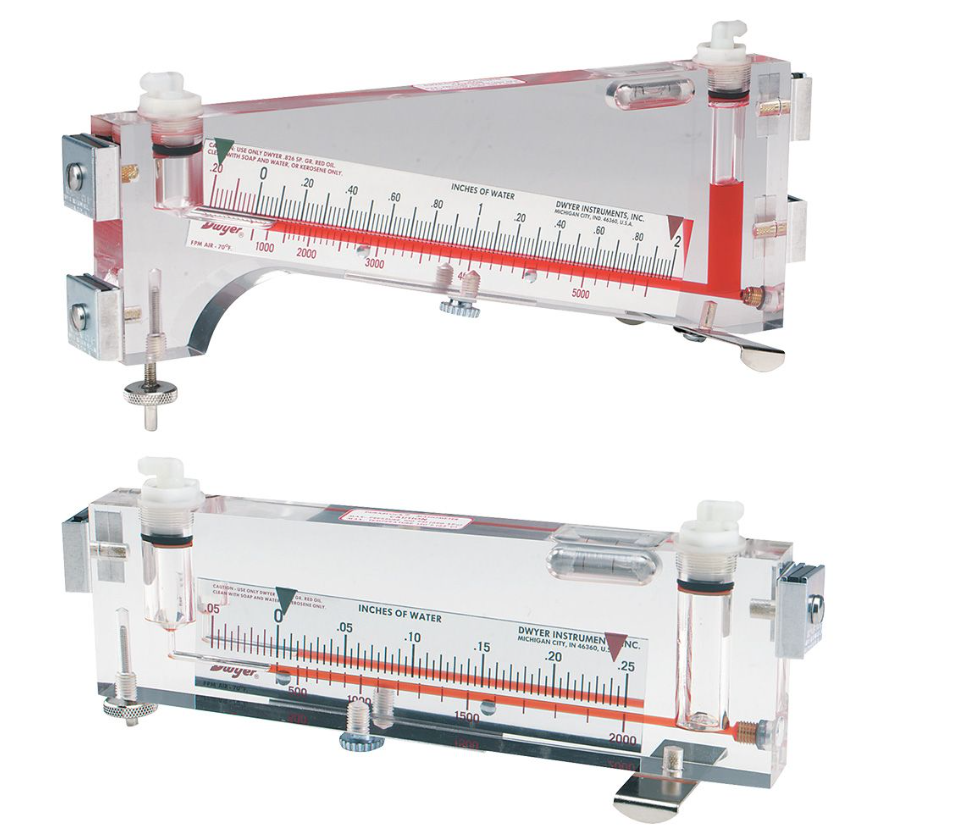

A precise tool with an inclined well-type design, the Dwyer 102-AV Durablock Solid Plastic Portable Manometer measures static pressure, vacuum, or differential pressure. This device, which is highly accurate and portable, measures the air volume passing through air conditioning coils. Just level, zero-adjust, fasten static lines, and place Trail-Tails into test holes.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2%
Air Velocity	Max: 5500 ft/min
Air Velocity	Min: 400 ft/min
Measurement method	Ft/Min
Pitot tube	12"
Range	0.20-0-2.0" w.c.
Scale	8-1/4"
Series	Family: Dwyer Instruments Sensors
Type	Pitot Tube Anemometer

Plastic Body: A solid acrylic block that is one inch thick and nearly unbreakable. It is not prone to distortion and is steady.
Drilled Bore: Never needs to be adjusted again because of distortion; always straight and unbent.
Reflective Chrome Finish Scales: These easily remove reading parallax issues.
Easily zeroed with an adjustable thumbscrew lock mechanism.
The zero setting of the Model 125 AV is adjusted via a screw plunger.
Red Gage Fluid has a specific gravity of.826. produces a well-formed, readable meniscus as a result of its great wetability.
Screw-based leveling adjustment enables precise, rapid leveling. Glass bubble level integrated into the ground for easy reference.
