Part Number : 109

For the measurement of static pressure, vacuum, or differential pressure, Dwyer® Series 100 Durablock® Solid Plastic Portable Manometers are precision instruments in inclined and vertical (well-type) forms. All bore and well machining is done to the highest standards of precision, supported by Dwyer's years of experience in the construction of acrylic instruments, to ensure the accuracy required in instruments of this sort.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	2 %
Measurement method	Differential, Vaccum
Measuring Units	inch H2O
PRESSURE	Max: 3 IN of H2O
Range	.20-0-3.0 in H2O
Scale	8-3/4"
Series	100 Durablock® Solid Plastic Portable Gage
Series	Family: Dwyer Instruments Sensors
Type	Inclined Tube
Weight	6 LBS

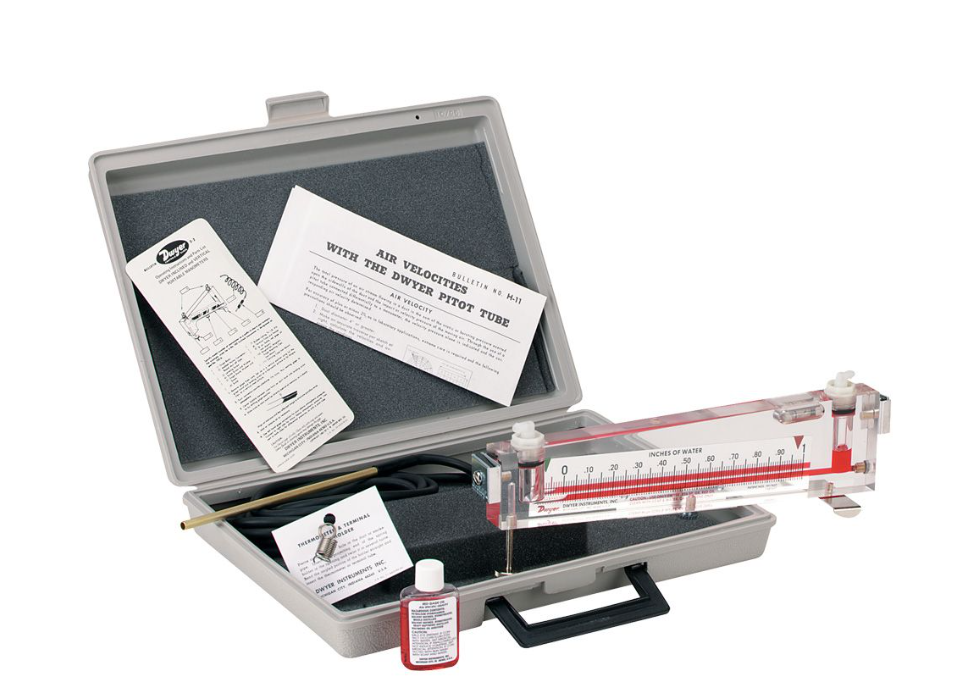

.20-0-3.0" w.c.,.02 minor division, 8-3/4" scale, solid plastic portable gage with plastic carrying box.
1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
Accurate to ±.0002" drilled bores are inherently straight and won't need to be recalibrated due to distortion.
High wetability gauge oil is chosen to create a well-shaped, constant meniscus that is easy to read.
Thumbscrew locking, reflective chrome finish scales that are adjustable for effortless zeroing.
To ensure optimal precision and consistency in parallax-free reading, just line the meniscus with its reflected image in the polished metal scale.
Screw-Style Leveling Using an integrated sensitive ground glass bubble level as a reference, inclined type gauge adjustment offers quick and precise leveling.
Fully equipped with add-ons and a protective plastic carrying box.
