Part Number : 115T-AV

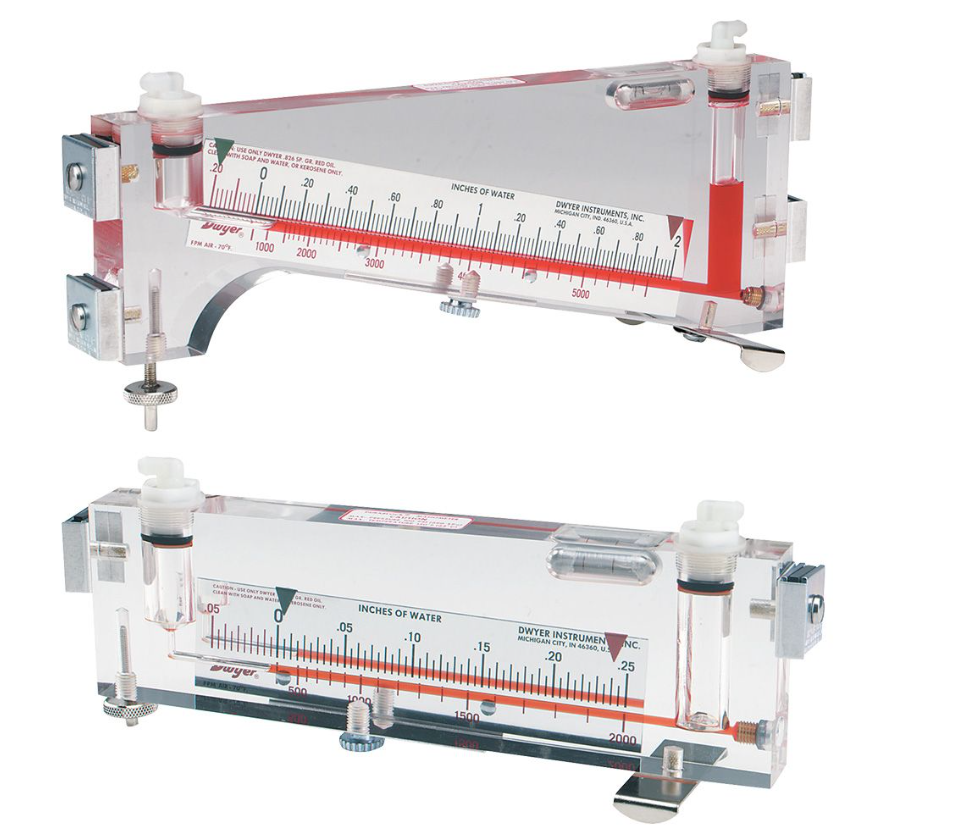

A Series 100 AV Durablock® Air Velocity Gage Kit, the Dwyer 115T-AV is used to measure vacuum, differential pressure, static pressure, and air velocity. It provides exceptional portability and precision. The wells and inclined bore are made of solid acrylic plastic and precisely machined, with tolerances of ±.0002".

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2%
Air Velocity	Max: 2000 ft/min
Air Velocity	Min: 400 ft/min
Measurement method	Ft/Min
Pitot tube	36"
Range	0.05-0-.25" w.c.
Scale	6"
Series	Family: Dwyer Instruments Miscellaneous
Type	Pitot Tube Anemometer

Plastic Body: A solid acrylic block that is one inch thick and nearly unbreakable. It is not prone to distortion and is steady.
Drilled Bore: Never needs to be adjusted again because of distortion; always straight and unbent.
Reflective Chrome Finish Scales: These easily remove reading parallax issues.
Easily zeroed with an adjustable thumbscrew lock mechanism.
The zero setting of the Model 125 AV is adjusted via a screw plunger.
Red Gage Fluid has a specific gravity of.826. produces a well-formed, readable meniscus as a result of its great wetability.
Screw-based leveling adjustment enables precise, rapid leveling. Glass bubble level integrated into the ground for easy reference.

DOWNLOAD CATALOG
