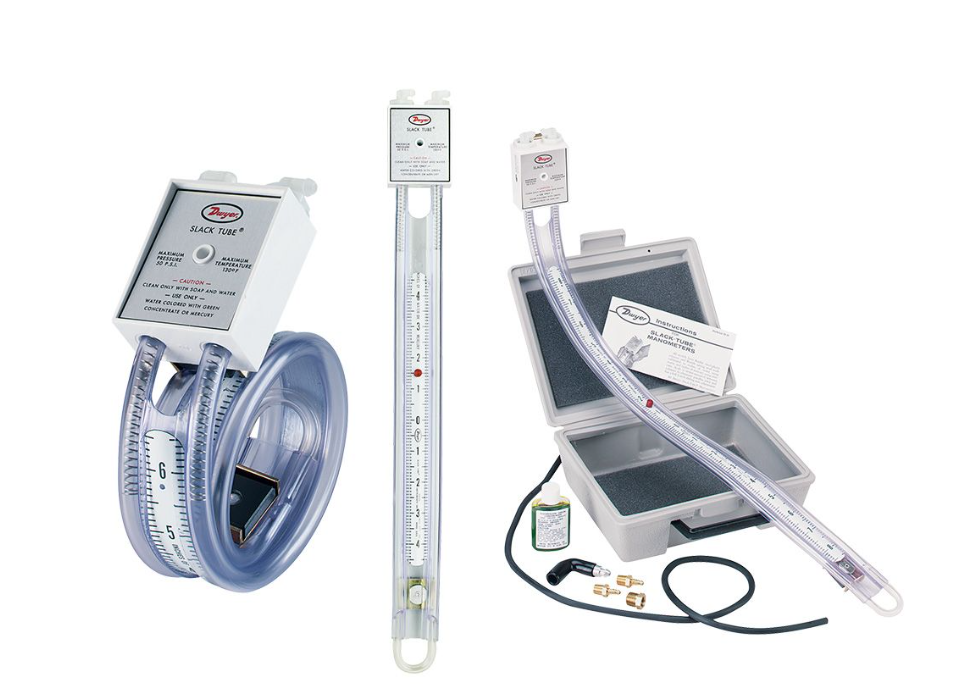

Dwyer Instruments 1211-16 | Manometer | Range 8-0-8 | 9 oz water or mercury required
The Slack Tube® Manometer Dwyer 1211-16 is made to be a dependable part for monitoring pressure differentials. It provides rapid and accurate readings with great accuracy and a broad operating range. Because of its small size and sturdy design, it can be used in a variety of settings and offers precise pressure readings in a clear and easy-to-use format.
The precision of the finest laboratory "U" gauges is matched by the Series 1211 Slack Tube Manometer, which rolls up neatly for portability. The pressure readings range covered by these manometers is from 4-0-4 inches to 60-0-60 inches. While Dwyer Slack Tube Manometers are built to resist rigorous use and roll up compactly for ease of transport, they are just as accurate as the best laboratory "U" gauges.
- Specifications
- Features
- Downloads
| Measurement method | Differential, Vaccum |
| Measuring Units | inch H2O, inch Hg |
| PRESSURE | Max: 8 IN of H2O |
| Range | 8 - 0 - 8 Inches of Water |
| Sensor Type | Slack Tube |
| Series | 1211/1212 Slack Tube® Manometers |
| Type | Manometer |
| Weight | 9 OUNCES (0.562 LBS) |
- Manometer, 8 to 8 range, 9 ounces of water or mercury needed.
- Rolls up for convenient carrying and storing.
- Overrange pressure safety traps to stop fluid loss from pressure surges or overrange pressures.
