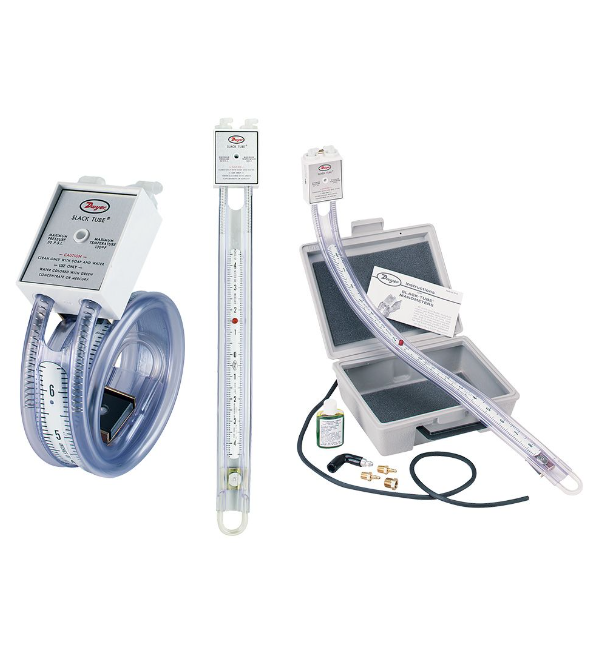

Dwyer Instruments 1211-8 | Manometer | Range 4-0-4 | 6 oz water or mercury required
The precision of the finest laboratory "U" gauges is matched by the Series 1211 Slack Tube Manometer, which rolls up neatly for portability. The pressure readings range covered by these manometers is from 4-0-4 inches to 60-0-60 inches. The Slack Tube® Manometer (SKU) Dwyer 1211-8 is a dependable and accurate measuring instrument. Because of its U-tube construction and reliable measurement of pressure differences, it can be used in a variety of applications. The manometer is a great option for professionals who want precise pressure readings because of its robust design and easy-to-use interface.

Free UAE shipping available
- Specifications
- Features
- Downloads
Measurement method | Differential, Vaccum |
Measuring Units | inch H2O, inch Hg |
PRESSURE | Max: 4 IN of H2O |
Range | 4 - 0 - 4 Inches of Water |
Sensor Type | Slack Tube |
Series | Family: Dwyer Instruments Sensors, 1211 Series |
Type | Manometer |
Weight | 6 OUNCES (0.375 LBS) |
- Manometer (6 oz water or mercury required), range 4-0-4.
- Rolls up for convenient carrying and storage.
- Overrange pressure safety traps to stop fluid loss from pressure spikes or overrange pressures.
- Monitoring of filters.
- Static duct pressure to adjust the damper location.
