Part Number : 209

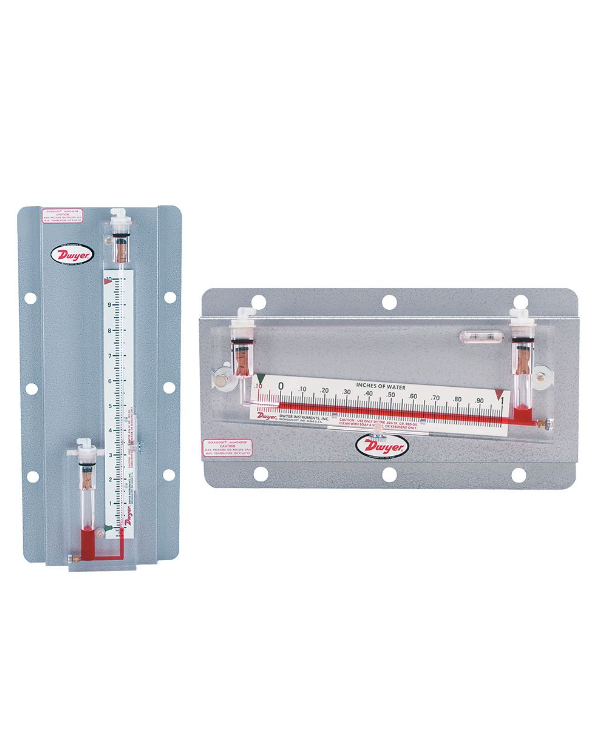

For very precise laboratory or general industrial operation, Dwyer® Series 200 Durablock® Solid Plastic Stationary Gages, also known as draft gages, are available in inclined and vertical (well-type) forms for the measurement of low range gas and air pressures, positive, negative, or differential. Because Dwyer has fabricated acrylic instruments for many years, all bore and well machining is done to the highest standards of precision to ensure the accuracy needed in instruments of this kind.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2%
Maximum Operating Pressure	3 IN of H2O
Maximum operating temperature	150°F
Minor Division	0.02
Range	.20-0-3.0" w.c.
Scale	8-3/4"
Type	Inclined Tube Manometer
Weight	4 lb 11 oz

4 lb 11 oz. solid plastic stationary gauge with a range of.20-0-3.0" w.c.,.02 minor division, and an 8-3/4" scale.
1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
Without any kinks or dents, the drilled bore is accurate to ±.0002" and won't need to be recalibrated due to distortion.
Particular Gauge For the most precise readability, a fluid with good wetability properties generates a consistent, well-shaped meniscus.
Easily zero in with these polished aluminum adjustable reflective scales that lock with a thumbscrew.
To get optimal precision and consistency in parallax-free reading, just align the meniscus with the picture reflected in the scale.
Over-Pressure Safety Traps stop fluid loss brought on by pressure surges or over-range pressures.
For inclined style gauges, leveling adjustment is as easy as removing a locking thumb screw on the side or bottom of the gauge and adjusting in accordance with the integrated.
