Part Number : 246

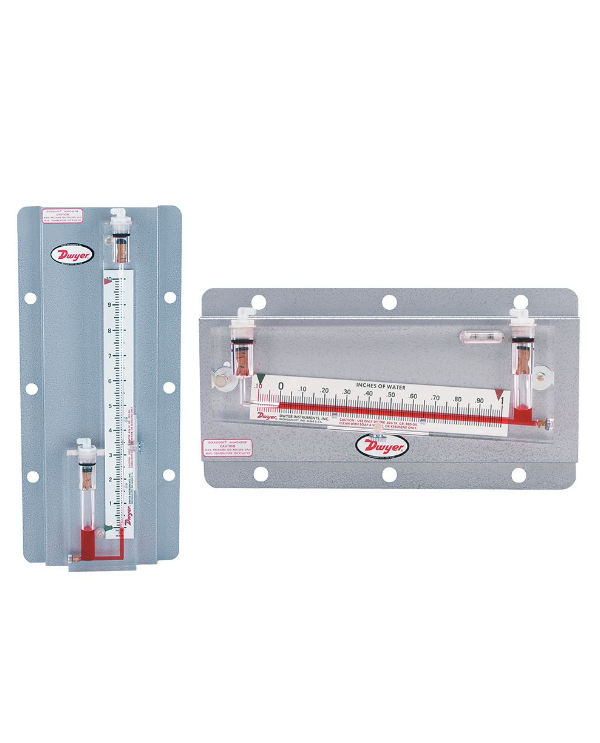

For very precise laboratory or general industrial operation, Dwyer® Series 200 Durablock® Solid Plastic Stationary Gages, also known as draft gages, are available in inclined and vertical (well-type) forms for the measurement of low range gas and air pressures, positive, negative, or differential. Because Dwyer has fabricated acrylic instruments for many years, all bore and well machining is done to the highest standards of precision to ensure the accuracy needed in instruments of this kind.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-1%
Maximum Operating Pressure	6 IN of H2O
Maximum operating temperature	150°F
Minor Division	0.02
Range	0-6" w.c.
Scale	20"
Type	Inclined Tube Manometer
Weight	13 lb 14 oz

Sturdy plastic fixed gauge,.02 minor division, 0–6" w.c., 20" scale, 13 lb 14 oz 1" thick acrylic The body is a single, nearly indestructible block that is stable and free from distortion risk.
Without any kinks or dents, the drilled bore is accurate to ±.0002" and won't need to be recalibrated due to distortion.
For the most precise readability, a consistent, well-shaped meniscus is formed by carefully choosing gauge fluid with good wetability qualities.
Easily zero in with these polished aluminum adjustable reflective scales that lock with a thumbscrew.
To get optimal precision and consistency in parallax-free reading, just align the meniscus with the picture reflected in the scale.
Over-Pressure Safety Traps stop fluid loss brought on by pressure surges or over-range pressures.
For inclined style gauges, leveling adjustment is as easy as removing a locking thumb screw located on the gage's side or bottom and adjusting in relation to the integral.
