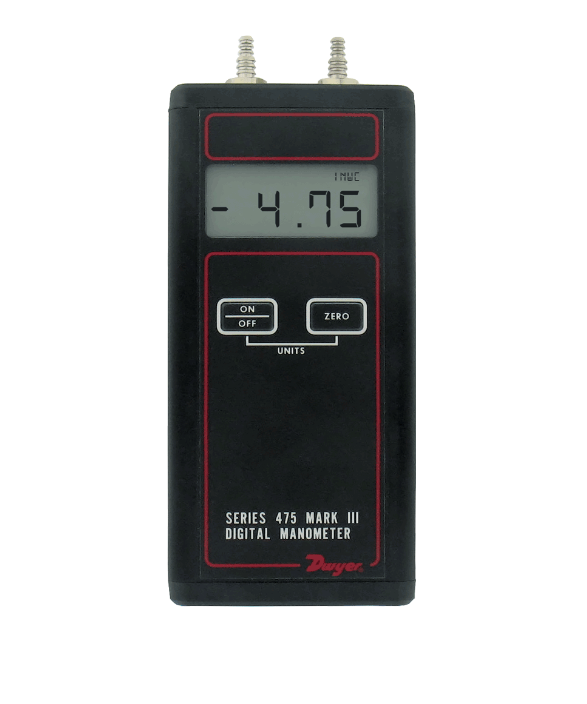

Dwyer Instruments 475-1-FM | Digital Manometer | 0-20 in w.c. | 10 psig max | Selectable English / Metric units
Between 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar), the Series 475 Handheld Digital Manometer measures the positive, negative, or differential pressures of air and natural gases. The front panel's dual push pads manage the pressure unit selection, auto zero, and on/off functions, making setup unnecessary and enabling easy use. The Series 475 can also be used as an air velocity gage when coupled with a Dwyer® Pitot tube.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | Instrument-Sensor: 0.5% |
Accuracy | Instrument-Sensor: 1.5% |
Application | Instrument-Sensor: Air and Compatible Combustible Gases |
Component | Manometer |
Connection | Process: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only. |
Display | 0.42" (10.6 mm) 4-digit LCD. |
Manufacturer | Dwyer Instruments |
Material | Wetted: Consult Factory |
Power | 9 V alkaline battery, installed non-functional, user replaceable. |
PRESSURE | Hysteresis: +/-0.1% of FS |
Supply Voltage AC | Instrument-Sensor: 9 V Battery |
Temp Range | Instrument-Sensor: 0 - 140°F/-17.8 - 60°C |
Type | Intrinsically Safe Handheld Digital |
Weight | 10.8 oz. (306 g) |
- Keeping an eye on the pressure of natural gas in boilers and other combustion equipment.
- Monitoring of air velocity using an AV calculator and a Dwyer® Pitot tube.
- Calibration of additional instruments in the field.
- Keeping an eye on or debugging HVAC systems.
- The sturdy metal casing shields the instrument from harm while being used or transported.
- Large, easy to read LCD and simple operation.
- FM certified as intrinsically safe in Class 1, Div 2, Groups A, B, C, D, T4 Ta = 70°C, and hazardous areas.
