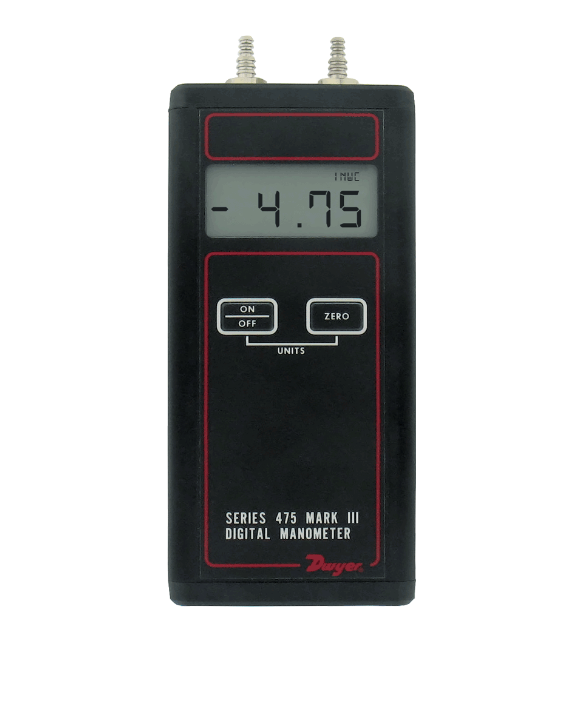

Dwyer Instruments 475-2-FM | Digital Pressure Meter | 1.44Psi | Model 475-2-Fm | NULL
Between 1 in w.c. (0.249 kPa) to 150 psid (10.34 bar), the Series 475 Handheld Digital Manometer measures the positive, negative, or differential pressures of air and natural gases. The on/off, auto-zero, and pressure unit selection are all controlled by the twin push pads on the front panel, making operation straightforward and requiring no setup. The Series 475 can also be used as an air velocity gauge when paired with a Dwyer® Pitot tube.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.5% Full Scale, 60 to 78°F (15.6 to 25.6°C); +/-1.5% Full Scale from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40°C) |
Approvals | CE, FM. |
Connection | Process: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 475-7 & 475-8 only |
Display | 0.42" (10.6 mm) 4-digit LCD |
Material | Wetted: Consult Factory |
Power | 9 V alkaline battery, installed non-functional, user replaceable |
PRESSURE | Hysteresis: +/-0.1% of Full Scale |
Temperature | Compensated Temperature Limits: 32 to 104°F (0 to 40°C) |
Temperature | Limits: 0 to 140°F (-17.8 to 60°C) |
Temperature | Storage Temperature Limits: -4 to 176°F (-20 to 80°C) |
Type | Digital Manometer |
Weight | 10.8 oz. (306 g) |
- Keeping an eye on the pressure of natural gas in boilers and other combustion equipment.
- Monitoring of air velocity using an AV calculator and a Dwyer® Pitot tube.
- Calibration of additional instruments in the field.
- Keeping an eye on or debugging HVAC systems.
