Dwyer Instruments 476A-0 | Digital manometer | Range -20 to 20" w.c.

Name: Dwyer Instruments 476A-0 | Digital manometer | Range -20 to 20" w.c.
Brand: Dwyer
SKU: 476A-0
Availability: OutOfStock

Part Number : 476A-0

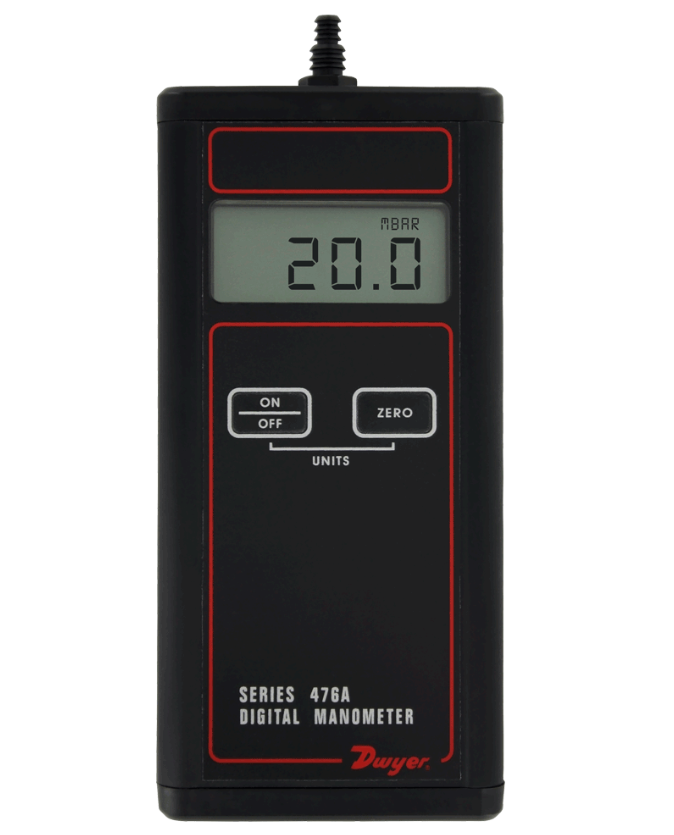

With an accuracy of ±1.5% FS, the Dwyer 476A-0 single-pressure digital manometer can measure low pressures between -20 and 20 in water column. It provides a quick selection option for up to nine English or metric units and a one-button auto-zero feature. The 476A is made to last because to its durable aluminum casing and auto power-off feature, which extends battery life.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability
Approvals	CE
Connection	Process: For use with 3/16" or 1/4" I.D. tubing
Display	4 digit LCD (.425"H x .234"W digits)
Material	Wetted: Consult factory
Maximum Operating Pressure	5 psig (.74 bar)
Maximum operating temperature	0 to 140°F (-17.8 to 60°C)
Power	9 V alkaline battery, installed non-functional, user replaceable
PRESSURE	Hysteresis: +/-0.1% of FS
Range	-20 to 20" w.c.
Temperature	Compensated Temperature Limits: 32 to 104°F (0 to 40°C)
Thermal Effect	0.05% FS/°F
Weight	10.8 oz (306 g)

Accuracy at full scale ±0.5%.
Durable aluminum extrusion housing.
Auto-zero function with one button.
Automatic shut-off feature to prolong battery life.
Select up to nine English/metric units instantly.
