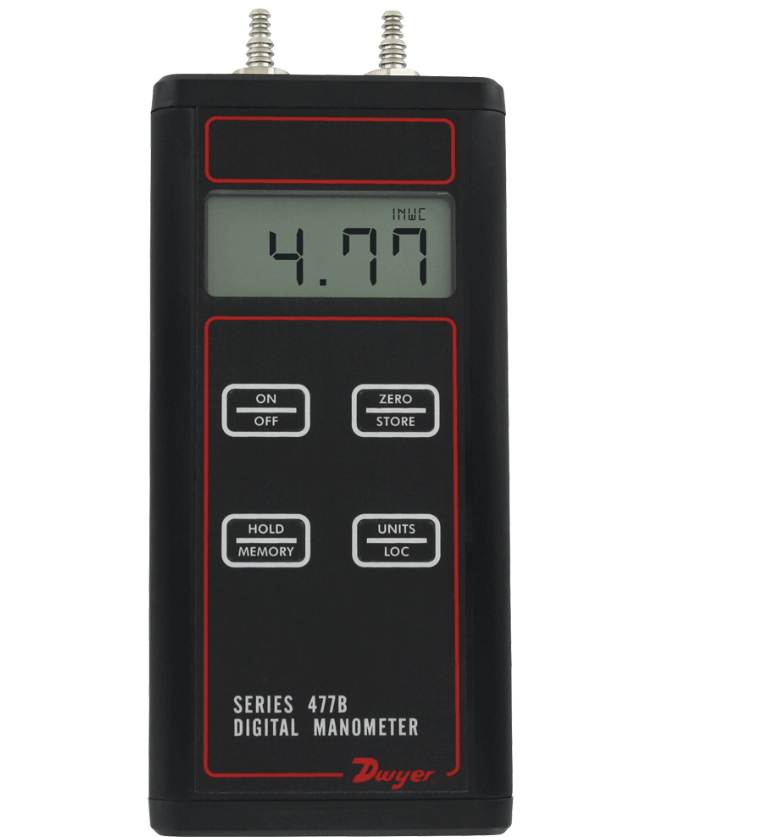

Dwyer Instruments 477B-5 | Handheld digital manometer | 0 to 30 psi (0 to 206.9 kPa)
The battery-operated, handheld, digital manometers in Series 477B are designed to be versatile and come in multiple basic ranges, ranging from 0-20 in w.c. to 100 psi. All models have an accuracy of ±0.10% of full scale for measuring positive, negative, or differential pressures. It is not necessary to convert because you have a choice of up to seven standard English and metric pressure units. Up to 40 readings can be stored for later reference using the memory feature, and a backlight adds extra lighting to areas that are difficult to see. A hold feature and audio and visual overpressure alerts are also included as standard features.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); +/-1% of full scale from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C) |
Approvals | CE |
Connection | Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) I.D. tubing for 477B-1, 477B-2, 477B-3, 477B-4 and 477B-5 only. Two compression fittings for use with 1/8" (3.18 mm) I.D. x 1/4" (6.35 mm) O.D. tubing for 477B-6 and 477B-7 only. |
Display | 4-digit LCD (.425" H x .234" W digits) |
Material | Wetted: Consult factory |
Maximum operating temperature | 0 to 140°F (-17.8 to 60°C) |
Power | 9 V alkaline battery. Battery included but not connected |
PRESSURE | Hysteresis: +/-0.1% of full scale |
PRESSURE | Max: 60 psig |
Range | 0 to 30 psi |
Series | Family: Dwyer Instruments Sensors |
Storage Temperature | -4 to 176°F (-20 to 80°C) |
Weight | 10.2 oz. (289 g) |
- Four times more accuracy is provided by precise 0.1% FS accuracy compared to most common manometers and gauges.
- The instrument's aluminum housing guards against harm.
- Internal memory with 40 readings cuts down on data recording time.
