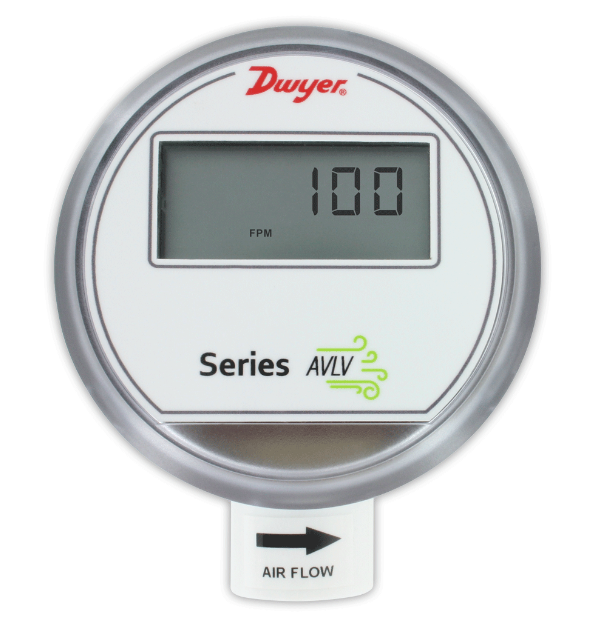

Dwyer Instruments AVLV-1DB1 | Air velocity transmitter | 1% accuracy | Duct mount | BACnet communication
The Dwyer AVLV-1DB1 air velocity transmitter is a duct-mount solution designed for accurate airflow monitoring and direct integration with building management systems through BACnet MS/TP communication. It provides 1% accuracy across four field-selectable velocity ranges and is suitable for VAV and AHU airflow control applications.
Request a quote in under a minute — call +971 6 5436933.
Part Number: AVLV-1DB1
The Dwyer AVLV-1DB1 is a duct-mount air velocity transmitter built for direct integration into a building management system using BACnet MS/TP communication. It provides 1% accuracy across four field-selectable velocity ranges: 100, 200, 300, or 400 FPM (0.5, 1, 1.5, or 2 m/s).
The transmitter features a NEMA 4X (IP66) enclosure that protects the electronics in mechanical rooms, plenum spaces, and other typical HVAC environments. It operates across a temperature range of 32 to 122°F (0 to 50°C) and supports 5–95% RH non-condensing humidity.
With a response time of approximately 4 seconds typical, or approximately 1 second at constant temperature, the AVLV-1DB1 is suitable for standard VAV and AHU control loops. It operates on 24 VAC or 24 VDC power with a maximum current consumption of 60 mA.
This variant is supplied without an onboard display. Air velocity readings are transmitted through BACnet and can be monitored through the connected BMS or controller. The compact 6.0 oz body is designed for convenient installation with a standard duct probe assembly.
The AVLV-1DB1 carries BTL and CE approvals and is designed for professional building automation and HVAC control applications.
If local readings are required during commissioning or field verification, the Dwyer AVLV-1DB1-LCD provides the same 1% accuracy and BACnet MS/TP communication with an integrated 5-digit LCD display.
Ready to order? Speak to our team at +971 6 5436933.
Key Benefits
- 1% accuracy for reliable duct air velocity measurement
- BACnet MS/TP communication for direct BMS integration
- Four field-selectable velocity ranges from 100 to 400 FPM
- NEMA 4X (IP66) enclosure for mechanical room and HVAC applications
- Suitable for VAV and AHU airflow control
- Compact 6.0 oz transmitter design
- No onboard display, allowing readings to be monitored through the connected BMS
- 24 VAC or 24 VDC power supply
- BTL and CE approvals
Who This Product Is Best For
The Dwyer AVLV-1DB1 is suitable for:
- BMS integrators
- HVAC controls contractors
- Building automation professionals
- VAV system installers
- AHU control applications
- Commercial HVAC installations
- Industrial building management systems
It is particularly useful for applications where accurate duct air velocity measurement needs to be transmitted directly to a BACnet-based BMS or controller without requiring a local display.
How to Use
- Mount the AVLV-1DB1 in the duct according to standard probe installation practices.
- Connect the transmitter to a 24 VAC or 24 VDC power supply.
- Connect the BACnet communication wiring to the BMS or controller.
- Select the required velocity range: 100, 200, 300, or 400 FPM.
- Verify that the connected BMS or controller is receiving the transmitted air velocity reading correctly.
- Configure the BMS according to the requirements of the HVAC control application.
Frequently Asked Questions
What accuracy does the Dwyer AVLV-1DB1 provide?
The AVLV-1DB1 provides 1% accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVLV-1DB1 be set to?
It can be configured for 100, 200, 300, or 400 FPM, equivalent to 0.5, 1, 1.5, or 2 m/s.
Does the AVLV-1DB1 support BACnet?
Yes. The transmitter communicates through BACnet MS/TP for direct integration with compatible BACnet-based building management systems.
What is the enclosure rating of the AVLV-1DB1?
The transmitter has a NEMA 4X (IP66) enclosure rating, making it suitable for mechanical room and plenum installations.
Does the AVLV-1DB1 have a local display?
No. The AVLV-1DB1 does not include an onboard display. Readings are accessed through the connected BMS or controller.
What power supply does the AVLV-1DB1 require?
The transmitter operates on 24 VAC or 24 VDC with a maximum current consumption of 60 mA.
What is the difference between the AVLV-1DB1 and AVLV-1DB1-LCD?
The AVLV-1DB1 does not include a local display, while the AVLV-1DB1-LCD includes a 5-digit LCD for local readings and commissioning. Both models provide 1% accuracy and BACnet MS/TP communication.
