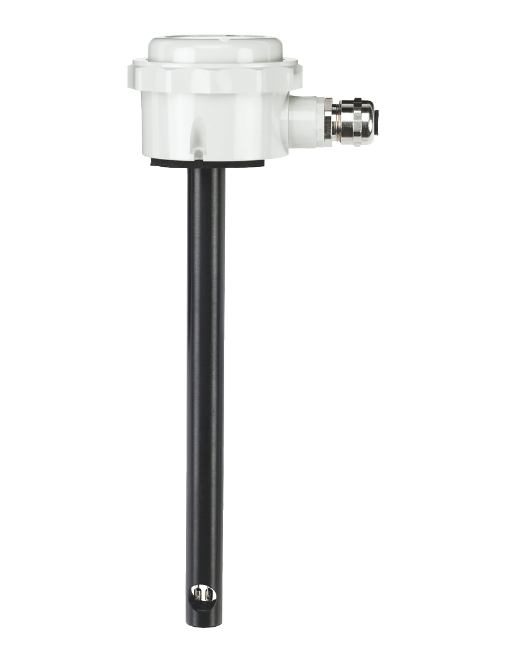

Dwyer Instruments AVU-2-A | Air velocity transmitter | range 0-1575 FPM (0-8 m/s) | 4-20 mA output | 5% accuracy
An air velocity transmitter from the Series AVU, Model AVU-2-A, is perfect for many HVAC measurement and control applications, especially in full building control and energy management systems. In order to measure the air velocity, the Series AVU Transmitter measures the heat loss from one of the two sensing components in the air stream. Because of the sensing element's construction, units are essentially immune to drift, ensuring accuracy of the transmitter across the whole air velocity range.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-5% of FS |
Approvals | CE |
Connection | Electrical: Screw terminal. Cable gland for 4-8 mm wire (16 gage wire) |
Current consumption [mA] | 60 mA + output current |
Device Load | 1/8th unit load |
Dimensions | Probe: 9.45 x .75" (240 x 19 mm) |
Enclosure Rating | NEMA 6 (IP67) except sensing point |
Humidity | Limit: 0-90% RH, non-condensing |
Loop Resistance | (-A models ) 700 ¢ž¦ |
Manufacturer | Dwyer Instruments |
Maximum operating temperature | 32 to 122°F (0 to 50°C) |
Maximum Startup Current | 85 mA; 10 V |
Mounting | Orientation: Unit not position sensitive. Probe must be aligned with airflow |
Output Current | (-V models) >10 mA |
Output Load Resistance | Current output: 0 to 1100 ¢ž¦ max. Voltage output: Minimum load resistance 1 k¢ž¦ |
Output Signal | -A models 4 to 20 mA current loop; -V models 0 to 10 VDC |
Power | -A models 24 VDC +10% - 15%; -V models 24 VDC or 24 VAC +10% - 15% |
Response Time | 5 sec (typical) |
Type | Air Velocity Transmitter |
Weight | 8.8 oz (250 g) |
- Versions with outputs of 0 to 10 V or 4 to 20 mA.
- IP67 (NEMA 6) enclosure rating.
- DC alone (loop version) or AC powered.
- Accuracy of 5% to 8%.
