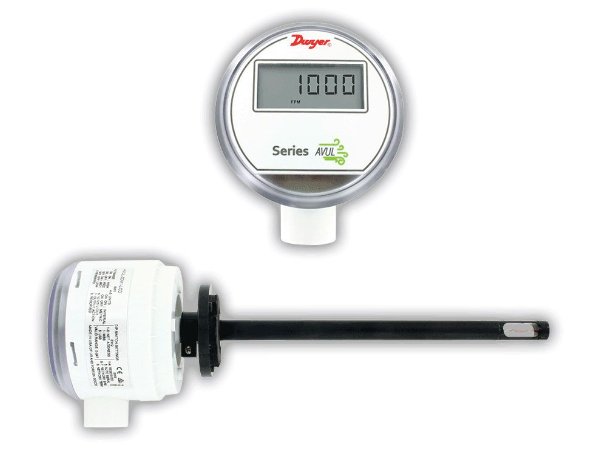

Dwyer Instruments AVUL-5DA1 | Air velocity transmitter | 5% of reading accuracy | Duct mount | Universal current/voltage outputs
A high-velocity duct-mount air velocity transmitter designed for supply and exhaust duct applications, providing 5% of reading accuracy, universal current/voltage analog outputs, and a field-selectable range of 1000–4000 FPM (5–20 m/s). The compact, display-free design is suitable for direct integration with BMS and HVAC control systems.
Request a quote in under a minute — call +971 6 5436933.
Part Number-AVUL-5DA1
The Dwyer AVUL-5DA1 is designed for higher-velocity supply and exhaust duct applications where dependable air velocity measurement and flexible analog integration are required. It measures air velocity from 1000 to 4000 FPM (5–20 m/s) with 5% of reading accuracy and provides universal current/voltage analog outputs for connection to compatible BMS and HVAC controllers.
The transmitter features a NEMA 4X (IP66) enclosure and is suitable for standard mechanical-room and plenum environments. It operates within a temperature range of 32–122°F (0–50°C) and tolerates 5–95% RH non-condensing conditions.
With a response time of approximately 4 seconds, or approximately 1 second at constant temperature, the AVUL-5DA1 is suitable for real-time AHU and fan-control applications. It operates on 24 VDC or 24 VAC with a maximum current requirement of 60 mA, making it practical for both retrofit installations and new HVAC control systems.
Unlike the LCD version, the AVUL-5DA1 is supplied without an onboard display. Measurements are read through the connected BMS or controller, making this model well suited to installations where local display functionality is not required.
The compact transmitter mounts into a standard duct probe assembly and carries BTL and CE approvals.
For applications requiring local measurement verification, the Dwyer AVUL-5DA1-LCD provides the same high-velocity measurement capability with a built-in 5-digit LCD.
Key Benefits
- 5% of reading accuracy for higher-velocity duct applications
- Universal current/voltage analog outputs for direct BMS integration
- Field-selectable ranges of 1000, 2000, 3000, or 4000 FPM
- Equivalent metric ranges of 5, 10, 15, or 20 m/s
- NEMA 4X (IP66) enclosure for demanding HVAC environments
- Compact design without an onboard display
- 24 VDC or 24 VAC power supply
- Suitable for AHU, supply-air, exhaust-air, and fan-control applications
- BTL and CE approved
Who This Product Is Best For
The Dwyer AVUL-5DA1 is suitable for HVAC controls contractors, BMS integrators, building automation professionals, and facility maintenance teams working with higher-velocity duct systems.
It is particularly appropriate for installations where air velocity measurements need to be transmitted directly to a BMS or controller through universal current/voltage analog outputs without requiring a local display.
How to Use
- Mount the AVUL-5DA1 in the duct using standard probe insertion practices.
- Connect 24 VDC or 24 VAC power according to the installation requirements.
- Connect the universal current/voltage analog output to the BMS or compatible controller.
- Select the required velocity range: 1000, 2000, 3000, or 4000 FPM.
- Confirm that the transmitted signal is being correctly received and interpreted by the connected BMS or controller.
- Verify system operation during commissioning.
Frequently Asked Questions
What accuracy does the AVUL-5DA1 provide?
The AVUL-5DA1 provides 5% of reading accuracy across its field-selectable velocity ranges.
What velocity ranges can the AVUL-5DA1 be set to?
The transmitter can be configured for 1000, 2000, 3000, or 4000 FPM, equivalent to 5, 10, 15, or 20 m/s.
What outputs does the AVUL-5DA1 provide?
It provides universal current/voltage analog outputs, including 4–20 mA, 0–5 VDC, and 0–10 VDC, for connection to compatible HVAC controllers and BMS systems.
What is the enclosure rating of the AVUL-5DA1?
The AVUL-5DA1 has a NEMA 4X (IP66) enclosure rating and is suitable for mechanical-room and plenum applications.
Does the AVUL-5DA1 have a local display?
No. The AVUL-5DA1 does not have an onboard display. Measurements are read through the connected BMS or controller.
What power supply does the AVUL-5DA1 require?
The transmitter operates on 24 VDC or 24 VAC with a maximum current requirement of 60 mA.
Is there an LCD version available?
Yes. The Dwyer AVUL-5DA1-LCD is the corresponding version with a built-in 5-digit LCD for local commissioning and measurement verification.
Does GeneralTech Shop deliver the AVUL-5DA1 across the UAE?
Yes. Contact GeneralTech Shop at +971 6 5436933 to confirm pricing and delivery availability for your emirate.
Should I choose the AVUL-5DA1 or AVUL-5DA1-LCD?
Choose based on whether your application requires a local display. The AVUL-5DA1 provides display-free BMS integration, while the AVUL-5DA1-LCD adds a 5-digit LCD for local readings.
