Part Number : DFC-48010-V-ALA2

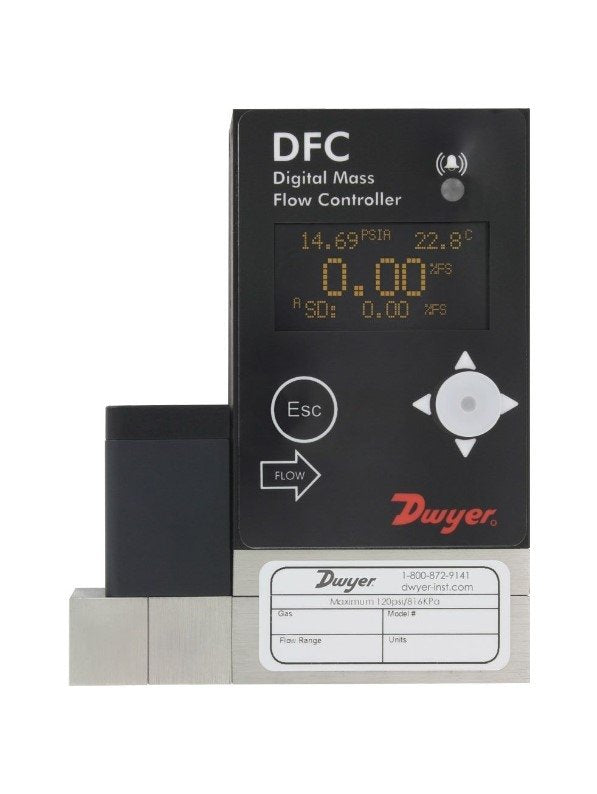

For precise readings and control, the Model DFC-48010-V-ALA2 DFC Digital Flow Controller combines a restrictor flow element with a straight tube sensor. Multiple industries benefit from simultaneous displays of temperature, pressure, mass flow, and volumetric flow characteristics. includes a traceable NIST certification.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-(0.5% of reading + 0.2% FS)
Approvals	CE
Connection	Process: 1/8" compression fitting for flow rates ¢°¤ 10 L/min (-005, -010)
Display	2 x 16 character OLED
Leak Integrity	1 x 10-9 sccs of helium
Manufacturer	Dwyer Instruments
Material	Wetted: 316 SS, 416 SS, high temperature polyamide, alumina ceramic, epoxy, silicone, glass, gold. FKM O-rings
Maximum Operating Pressure	120 psig (8.27 bar)
Maximum operating temperature	14 to 140°F (-10 to 60°C)
Maximum Particulate Size	20 microns
Output	0-5 VDC, 4-20 mA and 0-10 VDC
Power Supply	12-26 VDC
Relay	Rating: Programmable solid state relay
Repeatability	+/-0.2% FS
Response Time	150 ms
Type	Digital Flow Controller
Weight	DFC-01/50: 1.40 lbs (0.635 kg) DFC-51/56: 1.66 lbs (0.755 kg)

Able to perceive changes fast because of a response time of less than 20 ms.
easy configuration using software for calibration and configuration.
With up to ninety different user-selectable gases and gas mixtures, it works for a wide range of applications.
Fulfill application requirements with a high degree of precision and consistency.
Reduce downtime by using OLED or status LED indication for self-diagnostics.

DOWNLOAD CATALOG
