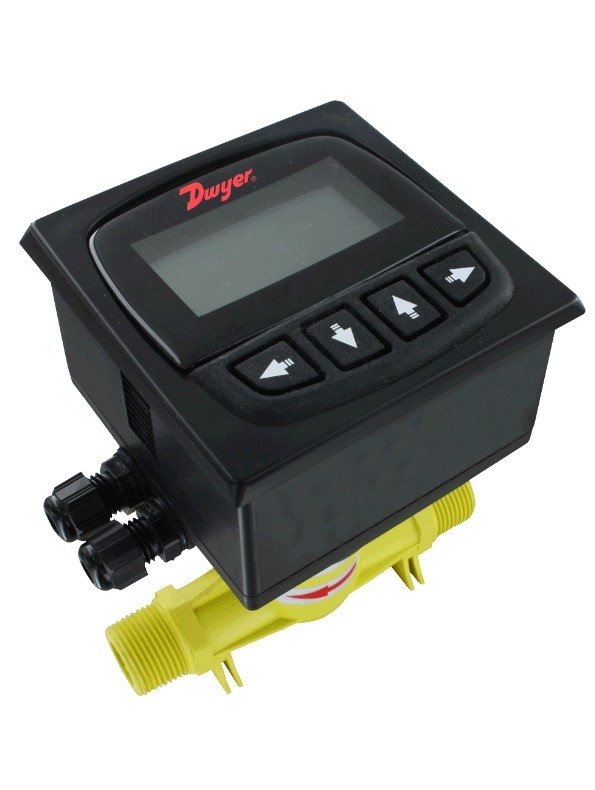

Dwyer Instruments DFMT-20A | 3/4" NPT Digital Flow Transmitter | Range 1.3 to 26 GPM (0.3 to 5.91 m3/h)

Name: Dwyer Instruments DFMT-20A | 3/4" NPT Digital Flow Transmitter | Range 1.3 to 26 GPM (0.3 to 5.91 m3/h)
Brand: Dwyer
SKU: DFMT-20A
Availability: OutOfStock

Part Number : DFMT-20A

The Digital Paddlewheel Flow Transmitter Model DFMT-20A offers both totalizing and instantaneous flow monitoring. With a small display, the device provides a user-selectable 4 to 20 mA or pulse output.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-1.5% FS
Connection	Electrical: Removable screw terminal
Connection	Process: 3/4‹� NPT
Display	2.38 x 1.25" (60.33 x 31.75 mm) LCD
ENCLOSURE MATERIAL	ABS plastic
Enclosure Rating	IP65
Manufacturer	Dwyer Instruments
Material	Wetted: Body: Sensor and impeller: PVDF Shaft: Ceramic O-rings: Fluoroelastomer
Maximum Operating Pressure	145 psi (1.0 MPa)
Maximum operating temperature	Process: -4 to 194°F (-20 to 90°C) Ambient: -4 to 149°F(-20 to 65°C)
Output	Analog: 4 to 20 mA (750 ¢ž¦ max. loop resistance) Pulse: NPN square wave output Frequency: 0 to 2 kHz (adjustable) Pulse width: 0 to 1000 ms (adjustable)
POWER CONSUMPTION	2 W
Power	12 to 24 VDC
Range	1.32 to 26.42 (0.3 to 6)
Repeatability	+/-0.5% FS
Totalizing Display Maximum	9,999,999,999
Type	Digital Flow Transmitter
Weight	1.15 (0.52)

With a visible indicator bar indicating the percentage of maximum flow, the sizable backlit LCD display specifies both immediate and cumulative flow.
Long operational life, corrosion-resistant PVDF sensor, and high precision paddlewheel technology.
The user-resettable totalizer makes it perfect for totalizing a single batch at any moment.
Unauthorized alterations are prevented via security password protection.
