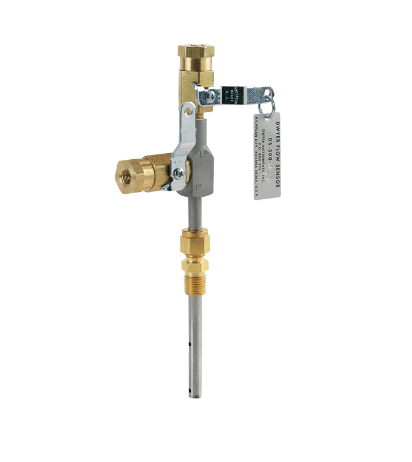

Dwyer Instruments DS-300-10-LV | Flow sensor | 10" pipe size | Without valves
When paired with a suitable differential pressure gauge with an acceptable range, the Model DS-300-10-LV In-Line Flow Sensors are two series of averaging Pitot tubes for compatible gases and liquids that provide precise and convenient flow rate sensing for schedule 40 pipe. The Series DS-300 Averaging Flow Sensors are available in pipe sizes ranging from 1 to 10" (2.5 to 25.4 cm), and they are intended to be installed in the pipeline using a compression fitting. Accessories for the Model A-471 Portable Capsuhelic® Gauge Kit include adapters with 1/4" SAE 45° flared ends that work with the hoses that come with it. A pair of 1/8" NPT x 1/4" SAE 45° flared adapters are included with the Series DS-400 Averaging Flow Sensors, which are intended for insertion lengths up to 24" (61 cm). These adapters are compatible with the hoses found in the Model A-471 Portable Capsuhelic® Gauge Kit. The accompanying solid brass mounting adapter features a 3/4" male NPT thread for mounting in a threaded branch connection (not included) and a 3/4" dia. compression fitting to lock in the necessary insertion length.
