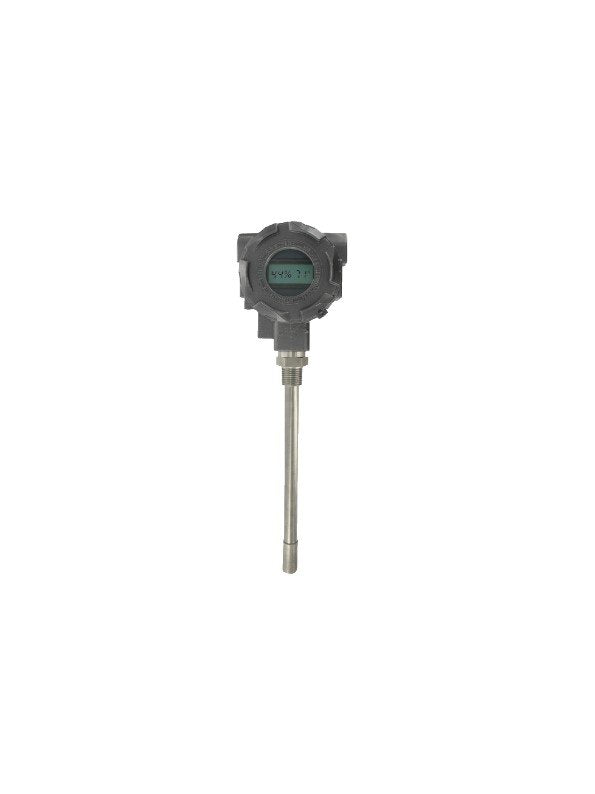

Dwyer Instruments HHT-IT-LCD | Intrinsically safe humidity/temperature transmitter with LCD display

Name: Dwyer Instruments HHT-IT-LCD | Intrinsically safe humidity/temperature transmitter with LCD display
Brand: Dwyer
SKU: HHT-IT-LCD
Availability: OutOfStock

Part Number : HHT-IT-LCD

A hazardous area humidity/temperature transmitter, the Series HHT, Model HHT-IT-LCD, measures temperatures and humidity accurately even in the most hostile conditions. For humidity only, the explosion-proof type has an output of 4 to 20 mA. The temperature and humidity outputs on the intrinsically safe version range from 4 to 20 mA, and in order to comply with hazardous area regulations, an intrinsically safe barrier is needed.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-2% 10 to 90% RH, +/-0.9°F at 72°F (+/-0.3°C at 25°C)
Approvals	FM, CE
Connection	Conduit: 1/2" female NPT
Connection	Electrical: Screw terminal block
Display Resolution	RH: 0.1% Temperature: 0.1°F (0.1°C)
Display	Optional 2 line alpha numeric, 8 characters/line. Temperature display is °F/°C selectable
Drift	<1% RH/year
Enclosure Rating	NEMA 4X (IP66). Models HHT-EX: FM Explosion-proof, Class I Div. 1 Group B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1; Models HHT-IX: FM Intrinsically Safe, Class I Div. 1 Group A, B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1 T4
Housing Material	Aluminum
Hysteresis	+/-1%
Maximum operating temperature	-40 to 140°F (-40 to 60°C)
Output Signal	4 to 20 mA, 2 channels for humidity/temperature models (loop power on RH)
Power	For intrinsically safe models HHT-IX, 9.5 to 28 VDC. For explosion-proof models HHT-EX, 16.5 to 28 VDC
Relative Humidity	Range: 0 to 100% RH
Repeatability	+/-0.1% typical
Response Time	15 s
Sensor Type	Capacitance polymer
Storage Temperature	-40 to 176°F (-40 to 80°C)
Temperature Range	-40 to 140°F (-40 to 60°C)
Temperature Range	Compensated: -4 to 140°F (-20 to 60°C)
TEMPERATURE SENSOR	Solid state band gap
Weight	2 lb 8 oz (1134 g)

Explosion-proof and fundamentally safe models with FM approval.
LCD option integrated.
Two-way output models for relative humidity and temperature.
