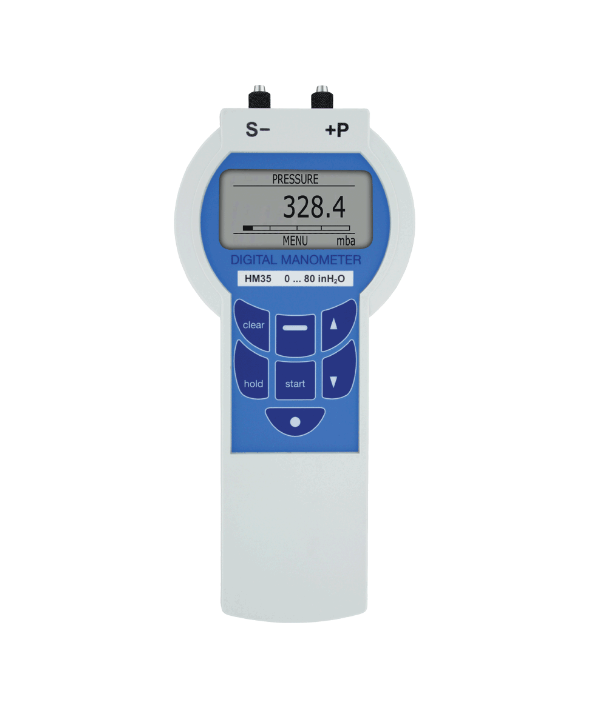

Dwyer Instruments HM3531DLK100 | Differential pressure manometer | Range 0-108 psi | 0.05% Accuracy
With an accuracy of up to 0.05%, the Series HM35 Precision Digital Pressure Manometer is made to measure and log absolute pressure, differential pressure, or gage pressure with dependability. Up to 10,742 measurements can be stored by the data recording feature and then transmitted to a PC via an IR serial connection. Peaks and valleys as well as data patterns can be visually shown on the huge display. Includes certification for calibration.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | 0.05% |
Approvals | CE |
Connection | Process: Hose 4/6 mm or 1/8" NPT |
Current consumption [mA] | 25 mA without back lit display, IR, or buzzer |
Display | Graphical back lit LCD. 128 x 64 points |
Humidity | Maximum 95% RH non-condensing |
Material | Wetted: 18/8 stainless steel |
Maximum operating temperature | 32 to 122°F (0 to 50°C) |
Memory Capacity | 10,742 readings. Recording intervals adjustable from 1 second to 24 hours or manual |
Power | (3) 1.5 V AA alkaline batteries, installed functional, user replaceable. Can operate on 6 to 9 VDC external power |
Protection | IP54 (NEMA 3) |
Range | 0-108 psi |
Series | Family: Dwyer Instruments Sensors, HM35 Series |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Weight | 10.5 oz (300 g) |
- Able to download readings to a PC and store up to 10,742 readings.
- Accuracy of up to 0.05% is suitable for critical applications.
- Determine the gage, differential, or absolute pressure.
