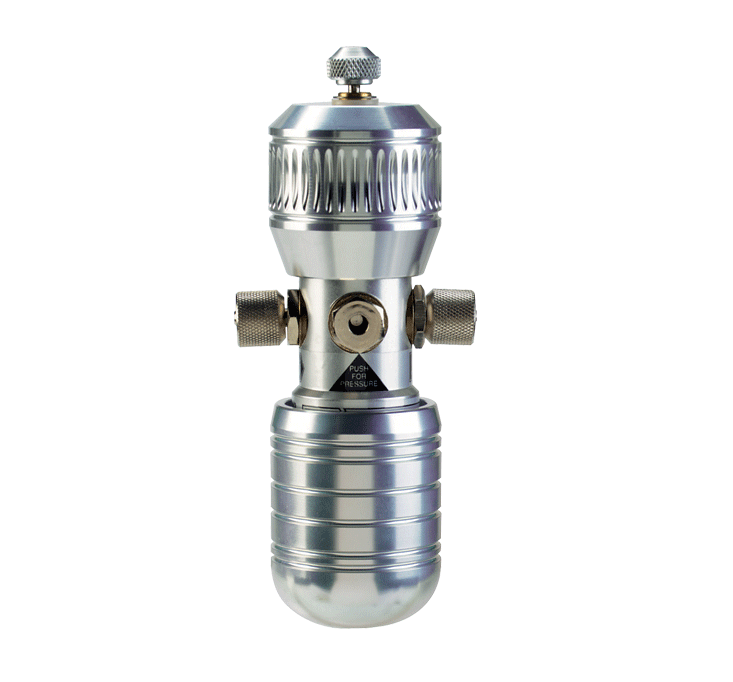

Dwyer Instruments HP-1 | Hand pump
The Dwyer Instruments HP-1 Hand Pump provides both pneumatic pressure and vacuum from a single compact, portable tool. It generates pressure up to 45 psig (3 bar) and vacuum down to -27 in. Hg (-910 mbar), with fine adjustment control better than 0.0015 psi (0.1 mbar) for precise low-pressure instrumentation calibration.
Genuine Control Techniques stock · Free UAE-wide shipping
Part Number: HP-1
Request a quote in under a minute — call +971 6 5436933.
Product Overview
The Dwyer HP-1 Hand Pump is designed for precise calibration of low-pressure instrumentation where controlled pressure and vacuum generation are required. It provides two pneumatic sources in one compact device, generating positive pressure up to 45 psig (3 bar) and vacuum down to -27 in. Hg (-910 mbar).
The HP-1 is designed for single-handed operation, making it practical for field technicians who need a portable calibration source. Its compact construction allows the pump to be carried easily between test locations while providing the pressure and vacuum control needed for low-pressure instrument verification.
A fine adjustment function allows the user to control the output to better than 0.0015 psi (0.1 mbar). An integrated pressure release valve provides additional control when adjusting or resetting the pressure between calibration points.
The HP-1 is supplied with an instruction manual and two 39-inch (1 m) hoses, each terminating in a 1/4" female NPT connection. One hose can be connected to a reference gauge while the other is connected to the device under test. Dwyer suggests the DPG-022 as a reference gauge for use with the HP-1.
The pump uses nickel-plated brass and anodized aluminum construction and weighs approximately 20 oz (587 g), making it suitable for portable calibration applications.
Key Benefits
- Provides both pressure and vacuum from one compact hand pump
- Generates pressure up to 45 psig (3 bar)
- Generates vacuum down to -27 in. Hg (-910 mbar)
- Fine adjustment control better than 0.0015 psi (0.1 mbar)
- Integrated pressure release valve for controlled adjustment and resetting
- Designed for convenient single-handed operation
- Includes two 39-inch (1 m) hoses
- Hoses terminate in 1/4" female NPT connections
- Nickel-plated brass and anodized aluminum construction
- Compact and portable for field calibration
- Genuine Dwyer stock with free UAE-wide shipping
Who This Product Is Best For
The Dwyer HP-1 is suited for:
- Calibration technicians performing low-pressure instrument verification
- Field technicians requiring a compact pressure and vacuum source
- Applications requiring fine adjustment below 0.002 psi
- Technicians calibrating low-pressure gauges and pneumatic instrumentation
- Reference gauge-based calibration setups
- Portable, single-handed calibration work
How to Use
- Connect one of the supplied 39-inch hoses to the reference gauge.
- Connect the second hose to the device under test.
- Operate the HP-1 with one hand to generate the required pressure or vacuum.
- Use the fine adjustment function to reach the required calibration set point.
- Use the pressure release valve to bleed off pressure and reset the pump between test points.
- Compare the device under test against the reference gauge and complete the required calibration procedure.
Frequently Asked Questions
What pressure and vacuum range does the Dwyer HP-1 cover?
The HP-1 generates pressure up to 45 psig (3 bar) and vacuum down to -27 in. Hg (-910 mbar).
How precise is the HP-1 fine adjustment?
The fine adjustment function provides control better than 0.0015 psi (0.1 mbar).
Can the HP-1 be operated with one hand?
Yes. The HP-1 is designed as a compact, portable pump that can be operated with one hand.
What is included with the HP-1?
The pump includes an instruction manual and two 39-inch (1 m) hoses with 1/4" female NPT connections.
What type of connections do the hoses use?
The supplied hoses terminate in 1/4" female NPT connections for connecting the pump to the reference gauge and device under test.
Does the HP-1 have a pressure release valve?
Yes. The integrated pressure release valve allows controlled pressure adjustment, bleeding, and resetting between calibration points.
What reference gauge can be used with the HP-1?
Dwyer suggests the DPG-022 as a reference gauge to pair with the HP-1.
What materials are used in the HP-1?
The pump uses nickel-plated brass and anodized aluminum construction.
Is genuine Dwyer HP-1 stock available with UAE shipping?
Yes. Genuine Dwyer stock with free UAE-wide shipping is available. Call +971 6 5436933 for current pricing and availability.
