Dwyer Instruments MAFS-48 | Averaging air flow sensor | 48" probe

Name: Dwyer Instruments MAFS-48 | Averaging air flow sensor | 48" probe
Brand: Dwyer
SKU: MAFS-48
Availability: OutOfStock

Part Number : MAFS-48

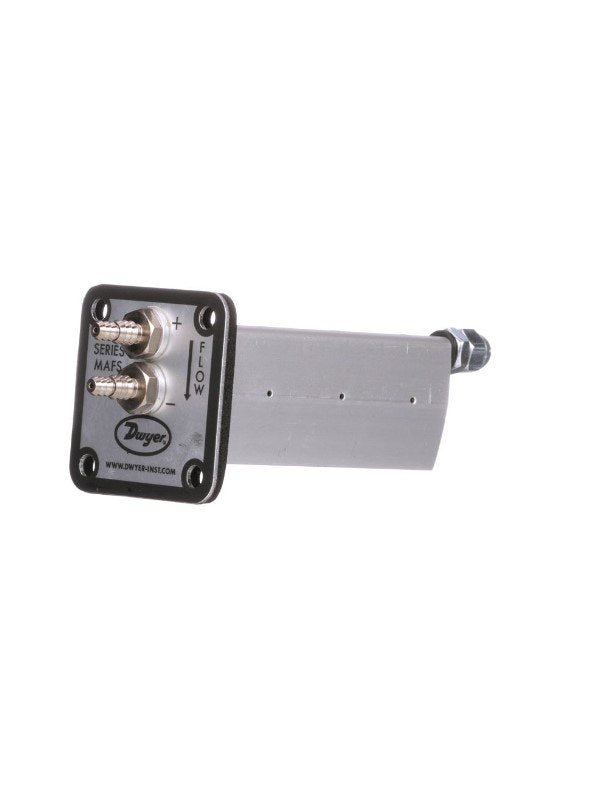

The Metal Averaging Flow Sensor, Model MAFS-48, Series MAFS, is perfect for use with Dwyer® precise air velocity gauges, transmitters, and switches. The Series MAFS provides a precise measurement of the velocity pressure in a duct by using equally distributed total and static pressure measuring points.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	400 to 9000 FPM (45.7 m/s): +/-2% FS +/-3% FS for 6" and 48" length models
Approvals	Meets the technical requirements of EU Directive 2011/65/EU (RoHS II)
Connection	Process: Dual barb for 3/16" or 1/4" ID tubing
Design Flow	Maximum: 12,000 fpm (60.91 m/s)
Design Flow	Minimum: 400 fpm (2 m/s)
K-Factor	0.81, 0.80 for 6" (160 mm) and 48" (1200 mm) lengths, 4" (100 mm) length=0.82
Manufacturer	Dwyer Instruments
Material	Wetted: Aluminum AA6063
Maximum operating temperature	400°F (204°C) Gasket: -31 to 230°F (-35 to 110°C)
Probe Length	48
Type	Metal Averaging Flow Sensor
