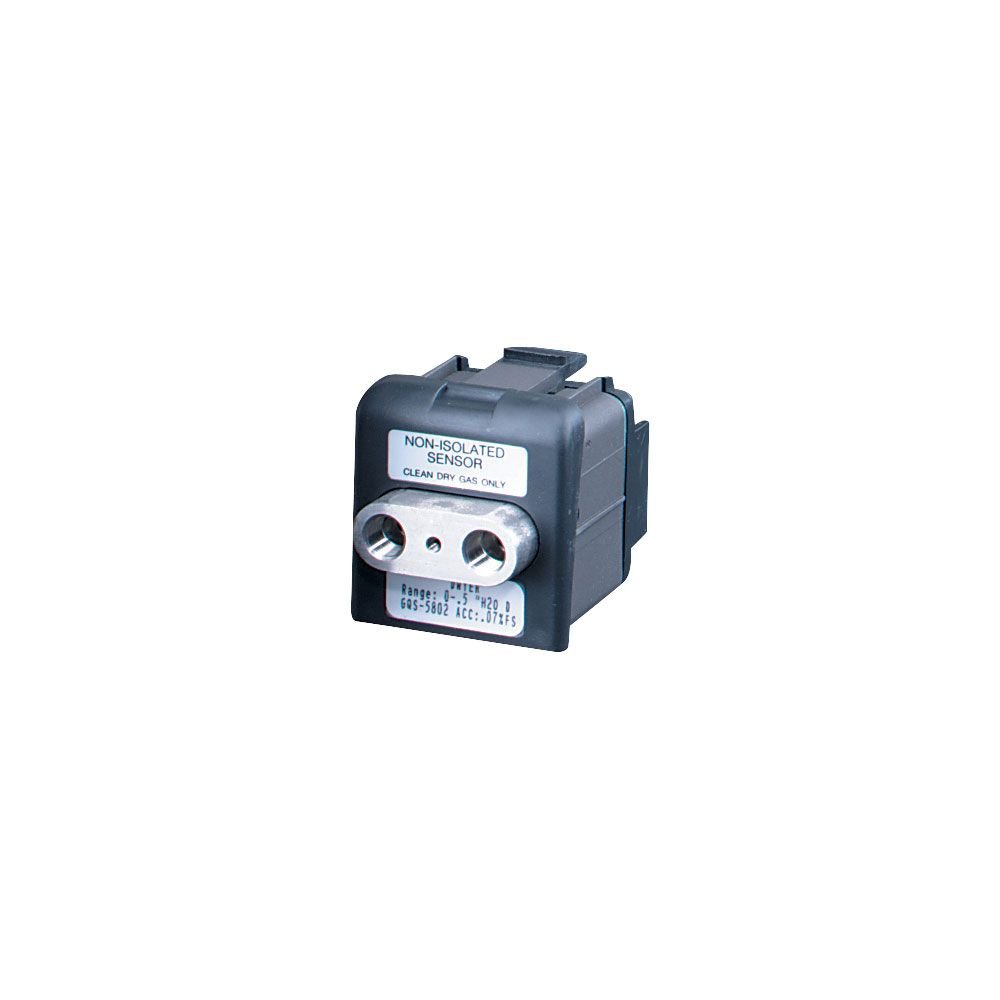

Dwyer Instruments MC1004 | Multi-Cal pressure module | 5" H20 DP | ±0.06

Name: Dwyer Instruments MC1004 | Multi-Cal pressure module | 5" H20 DP | ±0.06
Brand: Dwyer
SKU: MC1004
Availability: OutOfStock

Part Number : MC1004

With its interchangeable modules, the Multi-Cal Pressure Sensor MC1004 offers a wide range of pressure ranges and accuracy levels. Two pressure modules can be stored in a portable calibrator at once. The modules come with NIST calibration certification included.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.06
Alarm	Output: SPST form C 110 VDC, 120 VDC (max.), 1 A (mas.), 30 W, 62.5 VA (resistive)
Ambient temperature	32 to 120°F (0 to 49°C)
Battery Life	30 hours (approx)
Connection	Electrical: Miniature recessed banana jacks
Connection	Process: 1/8" female NPT
Dampening	300, 1200, 2400, or 9600, selectable
Display	Alphanumeric LCD, 0.37" (9.5 mm) height per line, 2 lines, 16 characters/line
Display	Update: 100 msec
Housing Material	ABS plastic
Measuring Units	In H2O, psi, in Hg, kPa, mbar, cm H2O, m Hg, and user-defined
Output	RS232 serial interface, 9-pin
Overpressure	Differential Pressure Modules: 50 psi positive direction, 15 psi negative direction, Gage Pressure Modules: 2x range (0/5 psi to 0/1000 psi)
Range	5" H20 DP
Sensitivity	+/-0.002% of span with dampening 1 part in 50,000 (max.)
Storage Temperature	-4 to 158°F (-20 to 70°C)
Temperature Effect	+/-0.001% of span per °F over compensated range
Temperature Error	Maximum of +/-0.004% of span per °F over compensated range for zero and span
Temperature	20 to 120°F (-7 to 49°C)
Weight	Calibrator: 2.2 lb (1.3 kg); Pressure Module: 0.5 lb (0.3 kg)

Monitoring of Clean Room Control Filter Performance.
Testing and Configuration of HVAC Draft Measurement.
Laminar flowhoods with airflow measurement control and differential pressure measurement.
Industrial Ovens, Paint Booths, and Fume Hoods.
Utilize as a Backup Standard for Pressure Equipment Calibration.
