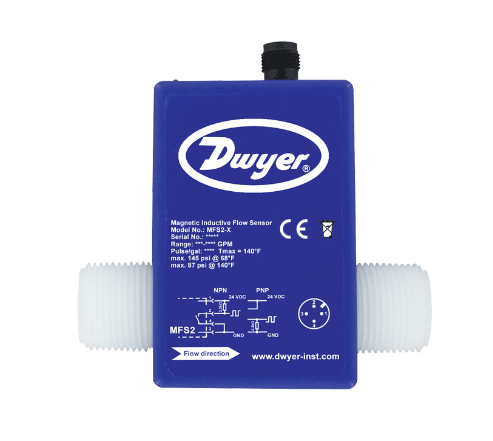

Dwyer Instruments MFS2-3 | Magnetic inductive flow sensor | Range .66 to 13.2 GPM (2.5 to 50 LPM) | 3/4" male NPT
The compact, 316 SS body, in-line flowmeters with pulse and optional analog 4–20 mA output are called Model MFS2-3 Magnetic Inductive Flow Sensors. It is offered with process connection sizes of 1/2" and 1" NPT and flow ranges of 0.25 to 52.8 GPM (1 to 200 LPM).

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-1% or reading |
Connection | Electrical: Plug connector M12x1 |
Connection | Process: 3/4" male NPT |
Current consumption [mA] | Max 80 mA |
Enclosure Rating | NEMA 4 (IP65) |
Flow Indication | LED green, flow proportional blinking |
Loop Resistance | 250 ¢ž¦ |
Manufacturer | Dwyer Instruments |
Material | Wetted: Electrodes: 316 SS Process connections: MFS2: PVDF |
Maximum Operating Pressure | MFS2: 145 psi (10 bar) @ 68°F (20°C) 116 psi (8 bar) @ 104°F (40°C) 87 psi (6 bar) @ 140°F (60°C) |
Maximum operating temperature | Process: 14 to 140°F (-10 to 60°C) Ambient: 41 to 140°F (5 to 60°C) |
Minimum Conductivity of Medium | 50 µS/cm |
Output | Frequency: Square-wave, NPN or PNP Analog: 4-20 mA |
POWER CONSUMPTION | 0.6 W |
Power | 24 VDC +/-10% |
Range | .66 to 13.2 GPM (2.5 to 50 LPM) |
Repeatability | 1% |
Response Time | < 100 ms |
Type | Magnetic Inductive Flow Sensor |
Weight | 8 oz (226.8 g) |
- Long lifespan without any wear and tear on the working parts.
- Can be used in situations when the flow has no mechanical components and the media is polluted.
- Low pressure drop is produced by a pipe cross-section devoid of obstructions.
- Not impacted by variations in concentration, density, viscosity, or temperature.
