Dwyer Instruments MM-2 | Digital Multimeter with True RMS;MM-2;Measures DC/AC Voltage;DC/AC
A digital multimeter for general electrical testing and troubleshooting is the Dwyer MM-2 True-RMS Auto-Ranging. It measures resistance to 400 Ohms, DC and AC current to 10 A, and voltage to 1000 V and 750 V, respectively. It features hFE tests for transistors, diodes, LEDs, and audio continuity. The four-digit backlit LCD shows the low battery level, mode, and value. Double injection provides strength and longevity to the tough casing.
- Specifications
- Features
- Downloads
| AC Supply | 0.1 uA to 10 A (1.5% + 5 dgt) |
| AC Voltage range | 0.1 mV to 750 V (1.3% + 5 dgt) |
| Continuity buzzer | Audible buzzer |
| DC Supply | 0.1 uA to 10 A (1.0% + 3 dgt) |
| DC Voltage range | 0.1 mV to 1000 V (0.5% + 2 dgt) |
| Display | Backlit with bar graph, 4000 counts plus decimal point |
| Frequency (Hz) | 1 Hz to 40 MHz |
| Manufacturer | Dwyer Instruments |
| Part number | MM-2 |
| Power | 9 V alkaline battery, included, user replaceable |
| Protection | 1000 Vrms |
| Sampling Rate | 2.5 times per second |
| Series | Family: Dwyer Instruments Miscellaneous |
| Temperature | -40 to 1382°F (-40 to 800°C) |
| Weight | 23.5 oz (666 g) |
- Test for Continuity: audible buzzer.
- Comes with a 9V battery.
Related Products

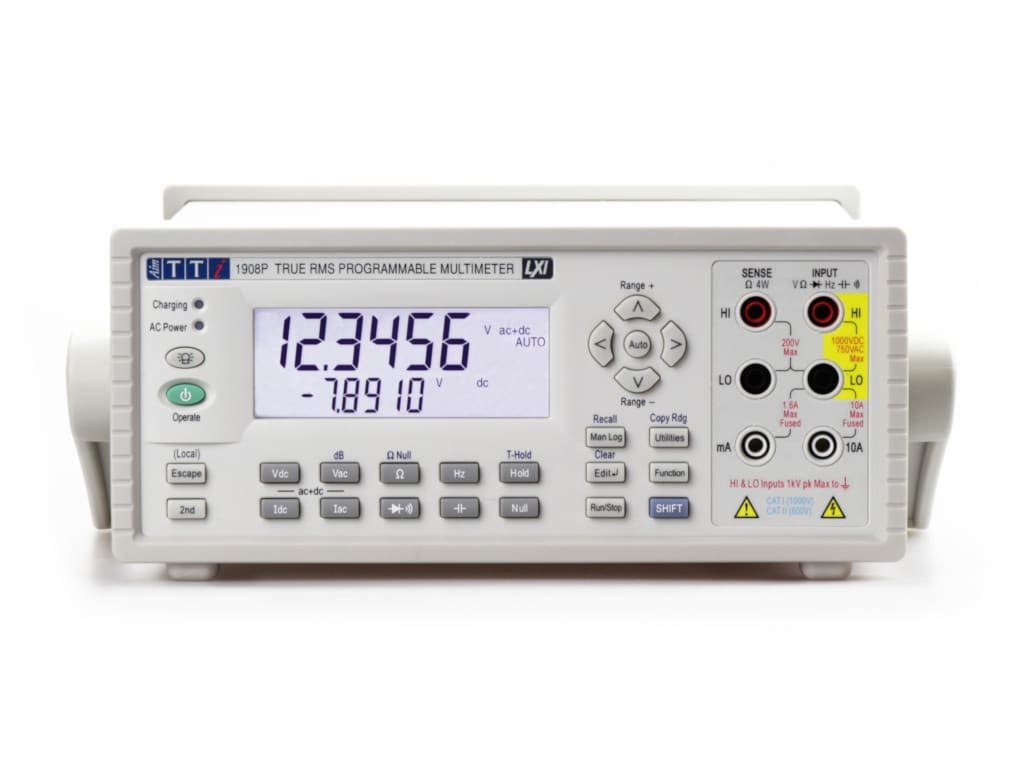

Aim TTi 1908 Bench Multimeter | Dual Measurement with USB Interface
Aim TTi 1908 Bench Multimeter | Dual Measurement with USB Interface
Bench Multimeter | Dual Measurement | with USB, RS232, LAN/LXI and GPIB Interfaces
Bench Multimeter | Dual Measurement | with USB, RS232, LAN/LXI and GPIB Interfaces

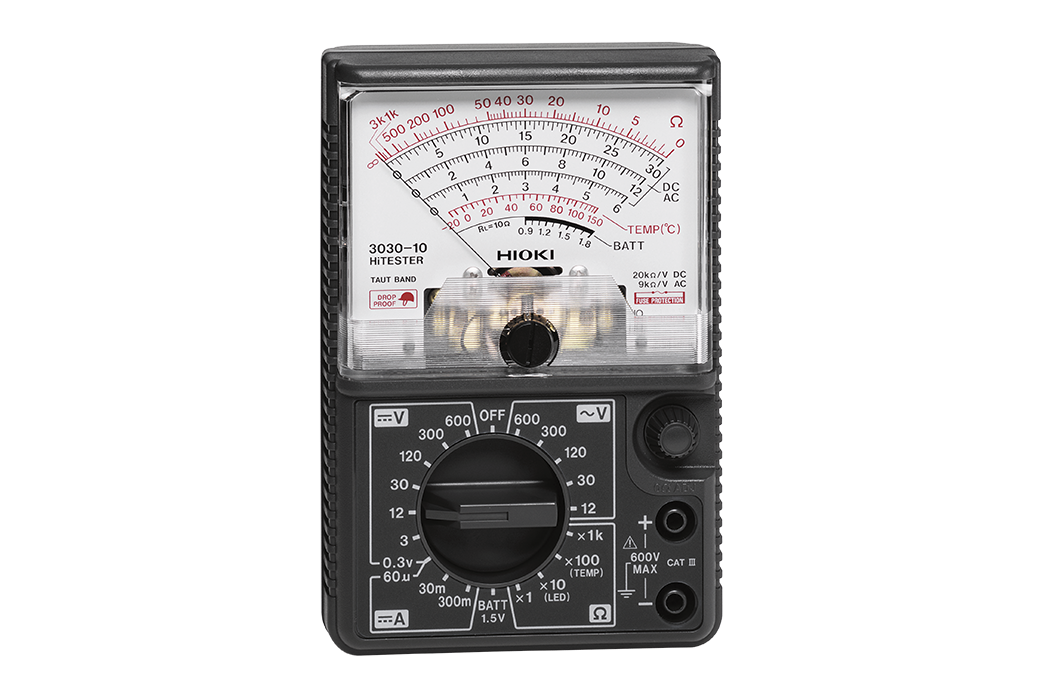

HIOKI 3030-10 | HiTESTER | Basic Analog Tester (20 kiloohm/V)
HIOKI 3030-10 | HiTESTER | Basic Analog Tester (20 kiloohm/V)

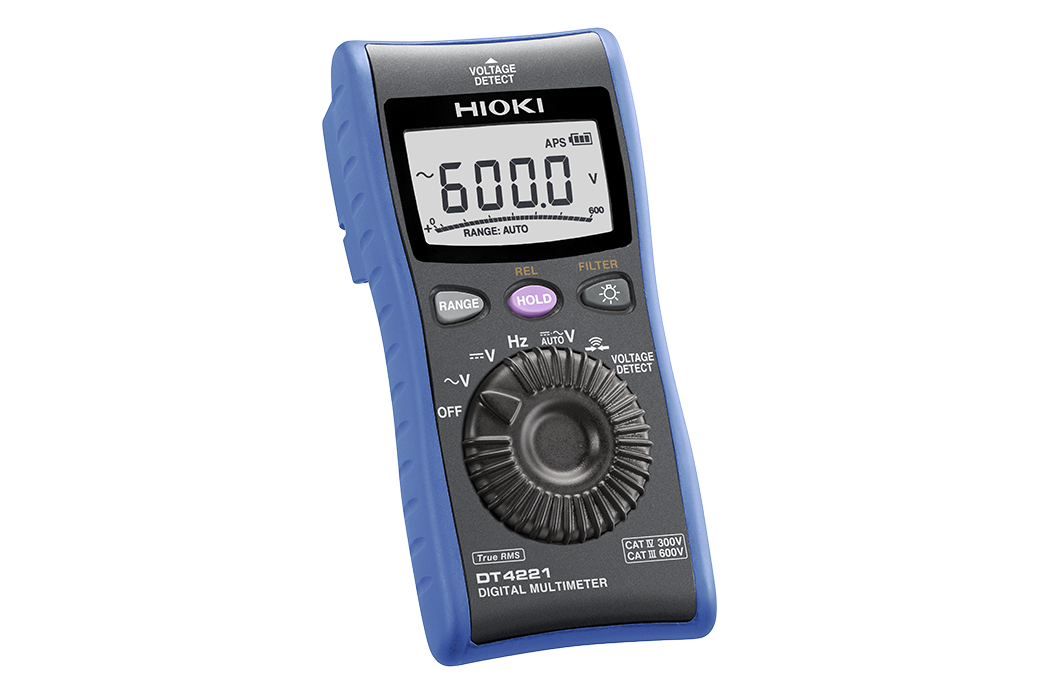

HIOKI DT4221 | DIGITAL MULTIMETER | Premier Pocket DMM with CAT IV 300 V, CAT III 600 V Safety
HIOKI DT4221 | DIGITAL MULTIMETER | Premier Pocket DMM with CAT IV 300 V, CAT III 600 V Safety

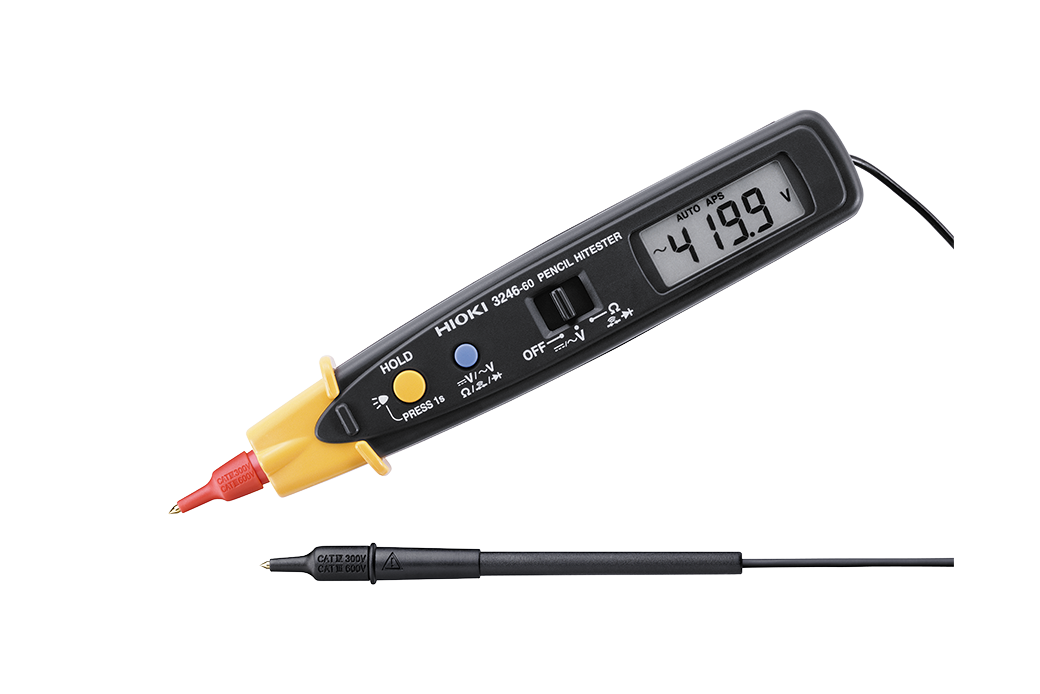

HIOKI 3246-60 | PENCIL HiTESTER | Pencil-style Pocket Digital Multimeter
HIOKI 3246-60 | PENCIL HiTESTER | Pencil-style Pocket Digital Multimeter

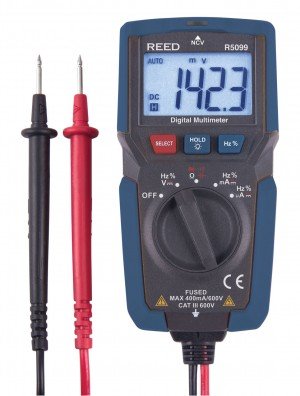

REED R5099 Compact Multimeter with NCV
REED R5099 Compact Multimeter with NCV

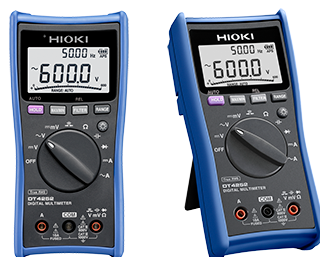

HIOKI DT4282 | Digital Multimeter
