Dwyer Instruments MV5-SF1 | Mini brass Ball Valve | Screwdriver slot | 1/8" pipe size

Name: Dwyer Instruments MV5-SF1 | Mini brass Ball Valve | Screwdriver slot | 1/8" pipe size
Brand: Dwyer
SKU: MV5-SF1
Availability: OutOfStock

Part Number : MV5-SF1

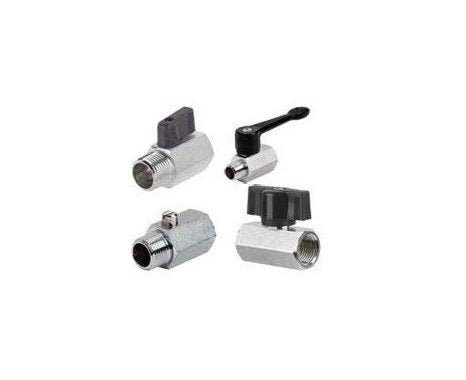

When it comes to tight locations, where larger valves are useless, the Model MV5-SF1 Mini Brass Ball Valves are perfect. The option of male x female or female x female process connections simplifies installation. Bubble-tight shutdown and wide media compatibility are features of pure PTFE ball seats. The double seal mechanism enables bidirectional operation of the valve.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Connection	Process: Female x Female
End connection	NPT
Material	Wetted: Valve Body: Chrome-plated brass Valve Ball: Chrome-plated brass O-Ring Stem Seal: Fluoroelastomer Series MV Mini Brass Ball Valve Ball Seats: PTFE
Maximum Operating Pressure	-29" Hg to 450 psi (-736 mm Hg to 31 bar) (CWP)
Maximum operating temperature	-4 to 250oF (-20 to 121oC)
Size	Pipe: 1/8"
Style	Handle: Screwdriver Slot
Type	Mini brass Ball Valve
