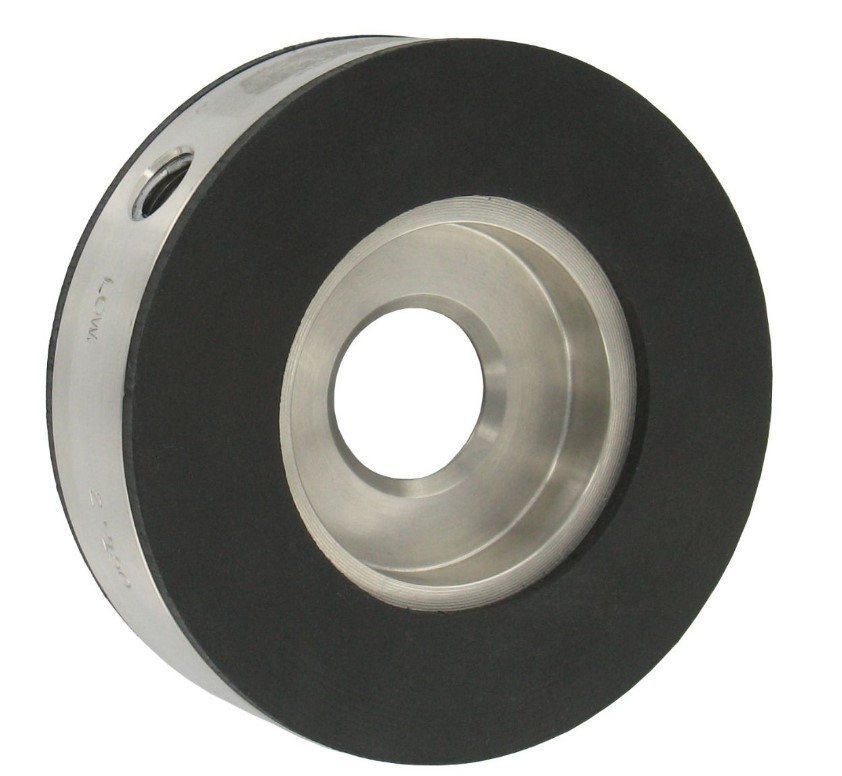

Dwyer Instruments OP-L-1 | Orifice plate flowmeter | 6" line size | 1.800" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 49.46 GPM flow; air capacity: 20" d.p. W/C | 187.86 SCFM @ 14.7 psia | 291 SCFM @ 20 psig | 531.75 SCFM @ 100 psig; 10 lb
Part Number : OP-L-1
A full orifice plate flow metering kit is offered by the Model OP-L-1 Orifice Plate Flowmeter. It has an integrated gasket and metering taps on a stainless steel orifice plate with a special holder or carrier ring. It was intended to be used whenever a traditional flow orifice plate is needed. For efficiency and cost-effectiveness, it can also be utilized in place of other main differential producers. The device may be installed by only sliding it between ordinary flanges; orifice flanges are not necessary. The Series OP may be utilized with suitable liquids and gases and comes in line diameters ranging from 1/2" to 24".
Free UAE shipping available
For pricing, please contact our experts.
