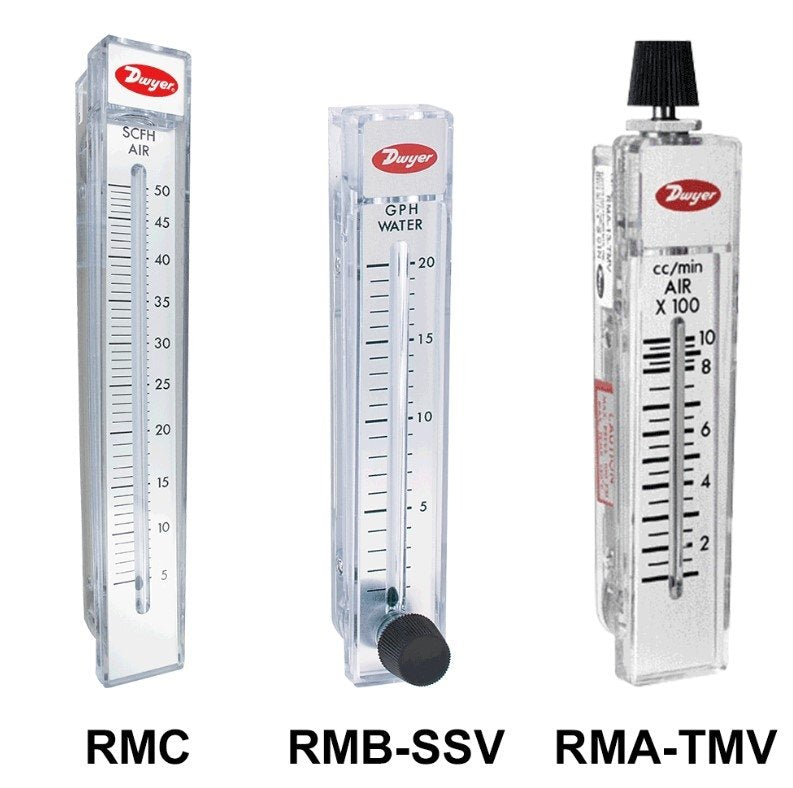

Dwyer RMB-85D-SSV | Rate-Master Flowmeter | 10-100 GPH (0.8-6.2 LPM) Water, 5" Scale, Stainless Steel Valve
Part Number : RMB-85D-SSV
Built with a stainless steel valve, the Dwyer RMB-85D-SSV Rate-Master flowmeter gives a direct reading of 10-100 GPH (0.8-6.2 LPM) water across a 5" (127 mm) scale. Use the RMB-85D-SSV for general-purpose gas or liquid flow monitoring, either surface mounted or set into a panel.
- Range 10-100 GPH (0.8-6.2 LPM) water on the 5" (127 mm) scale, stainless steel valve fitted
- 3% accuracy and 1/4" female NPT process connections on the RMB-85D-SSV
- RMB-85D-SSV rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
- Wetted parts of the RMB-85D-SSV: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
- RMB-85D-SSV body swaps within its 5" scale size for cleaning or a range change, leaving pipework in place
- Weighs 13 oz (368.5 g); the RMB-85D-SSV meets RoHS II (EU Directive 2011/65/EU)
Free UAE shipping available
For pricing, please contact our experts.
