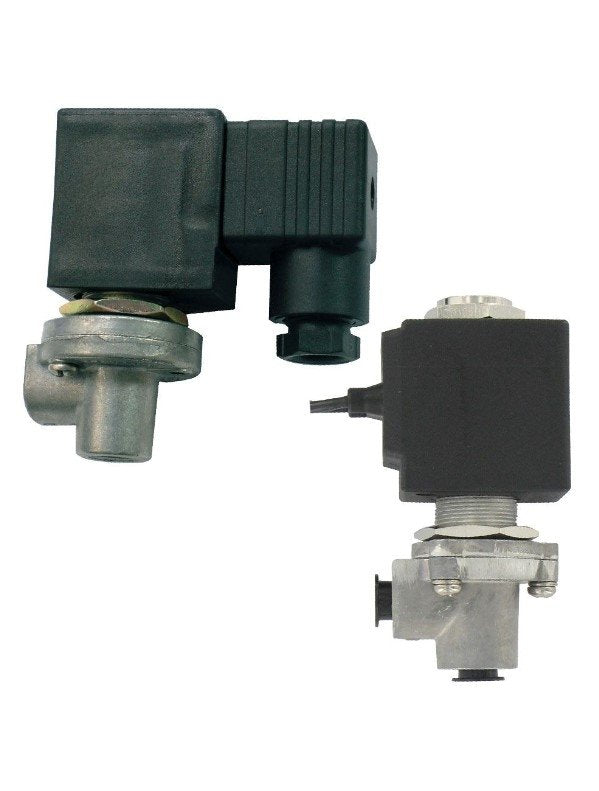

Dwyer RSV2L | Pilot Solenoid Valve | 220 VAC, Wire Lead Connection, Cv 0.33
Part Number : RSV2L
Used to operate Series RDCV remote-type diaphragm valves, the Dwyer RSV2L pilot solenoid valve has a wire lead electrical connection, a Cv of 0.33 and a 220 VAC coil. It can drive diaphragm valves of any size, and the RSV2L mounts in any position.
- 1/8" female NPT process port; RSV2L pneumatic tube run up to 3 m (9.8 ft)
- The RSV2L works from 4.4 to 124.7 psi (0.3 to 8.6 bar)
- NEMA 4X (IP65) enclosure and CE approval for the RSV2L
- Aluminium body, 304 SS core and spring, NBR seals on the RSV2L
- RSV2L: ambient -20 to 50°C, weight 0.27 kg
