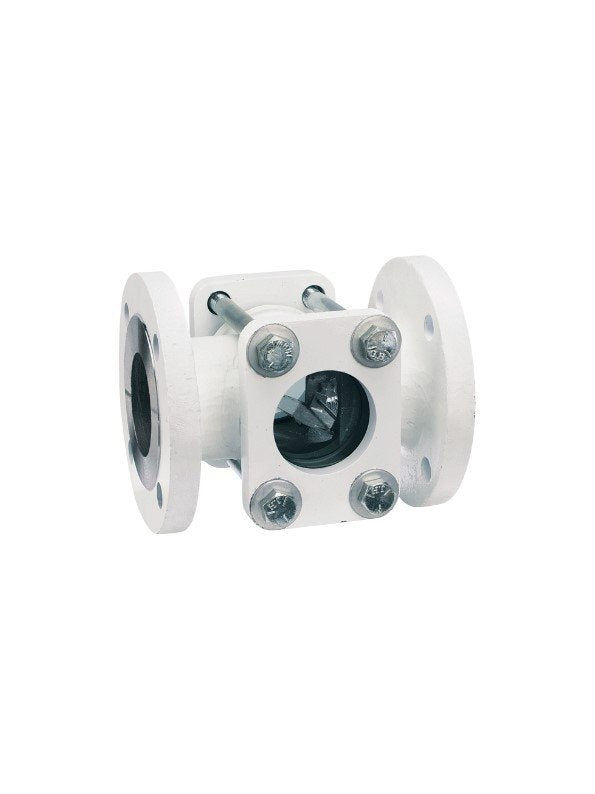

Dwyer Instruments SFI-350FCS-4 | Sight flow indicator | 4" body | 10.250" (260 mm) length | 9.000" (229 mm) flange dia. | 4.000" (102 mm) viewing dia. | 56 lb (25 kg)

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : SFI-350FCS-4

The SFI-350FCS-4 model of sight flow indicators is made with high-quality materials and has undergone safety testing to provide long-lasting, dependable operation at a reasonable cost. The 300°F Series features two viewing windows, carbon steel or 316 SS bodies, and ANSI flange process connections. The 360F type features a double window with a flapper, while the 350F type has a double window without a moving indication. Every kind has a detachable window for simple maintenance and component replacement.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Connection	Flanged
Diameter	Flange: 9.000" (229 mm)
Diameter	Viewing: 4.000" (102 mm)
Length	10.250" (260 mm)
Manufacturer	Dwyer Instruments
Material	Wetted: Window: tempered glass Body: carbon steel or 316 SS Gasket: Buna-N, fluoroelastomer or PTFE Indicator: 316 SS flapper (360)
Maximum Operating Pressure	150 psig (10.34 bar)
Maximum operating temperature	200°F (93°C)
Size	Body: 4"
Type	Sight Flow Indicator
Weight	56 lb (25 kg)

The Series 300°F Sight Flow Indicators are crafted from high-quality materials, ensuring durability and reliability in demanding conditions.
These indicators undergo rigorous safety testing to guarantee their performance and safe operation, providing peace of mind to users.
Equipped with ANSI flange connections, these indicators offer compatibility with standard piping systems, facilitating easy installation.
Featuring double viewing windows, these indicators provide enhanced visibility into the flow of fluids, allowing operators to monitor processes effectively.
Available with bodies made of either carbon steel or 316 stainless steel, providing options to suit different application requirements and environmental conditions.
The 350F type features a double window with no moving indicator, while the 360F type features a double window with a flapper, offering versatility to meet various user needs.
All types feature a removable window, enabling easy servicing and replacement of wearing parts, minimizing downtime and maintenance efforts.

DOWNLOAD CATALOG
